Fujitsu PRIMERGY RX2530 M1 Upgrade And Maintenance Manual

180 Upgrade and Maintenance Manual RX2530 M1
Expansion cards and backup units

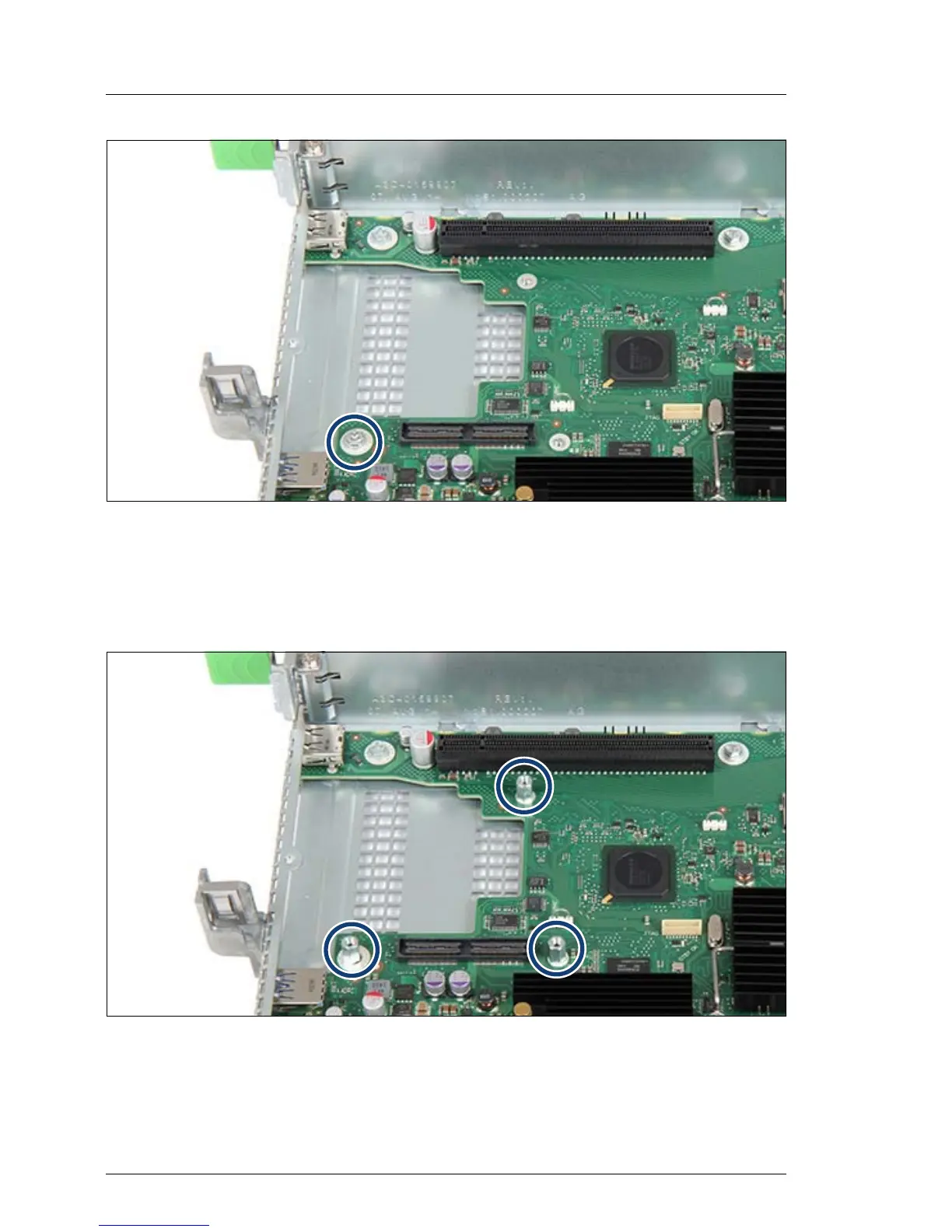

Figure 113: Removing the system board screw
Ê Remove the system board screw (see circle).
9.4.1.3 Installing the DynamicLoM module
Figure 114: Installing the three bolts
Ê Install three bolts (see circles). Different bolts must be used depending on
the height of the dynamic LOM module (see section "Equipping the slot for
DynamicLoM modules" on page 165).
