Right side 4 x 2.5-inch HDD backplane (A3C40157828)

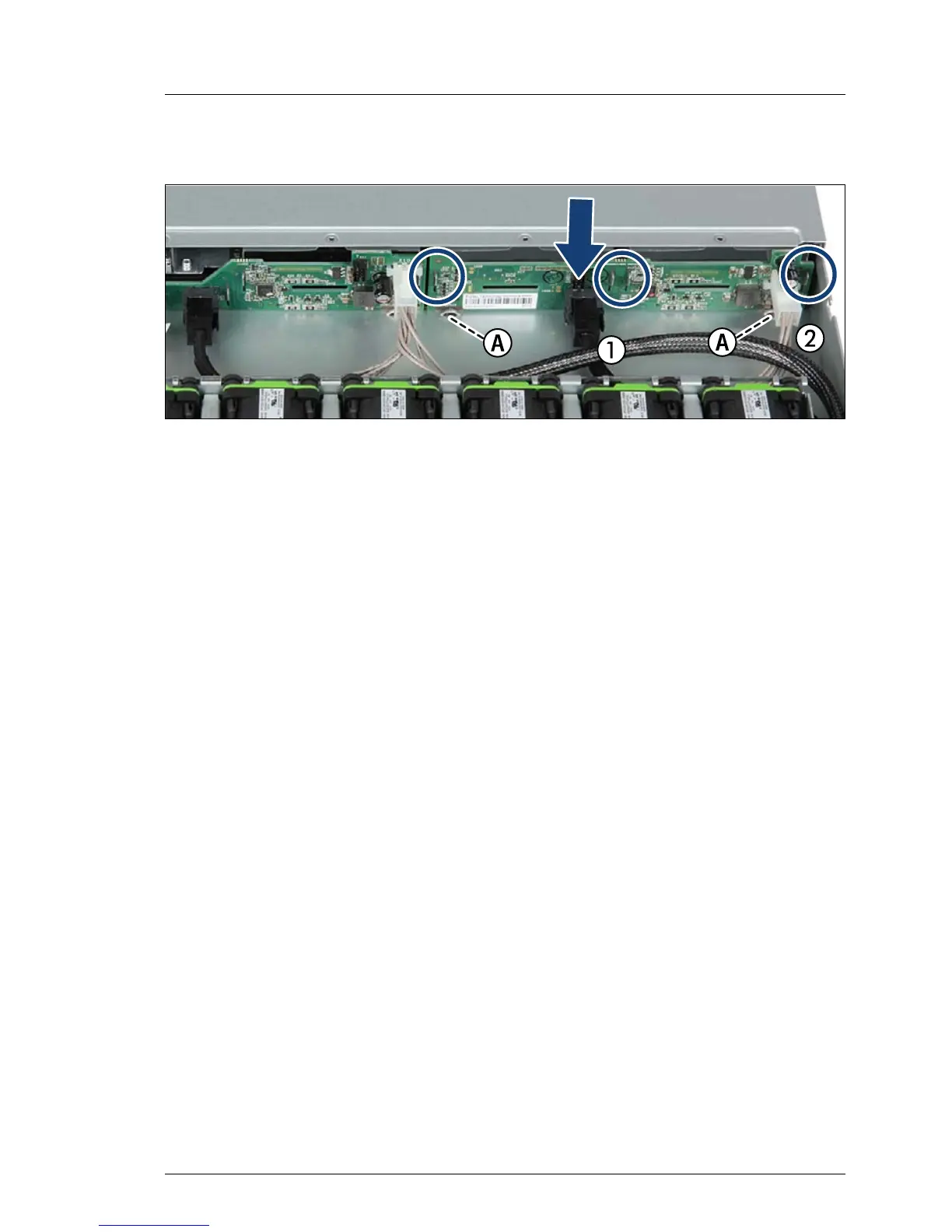

Figure 58: Installing the 4 x 2.5-inch HDD backplane
Ê Position the HDD backplane on the four hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the lower cant of the
HDD backplane fits in the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
Ê Connect the following cables to the HDD backplane:
– (1) SAS cable to connector "X5" on the HDD backplane
– (2) power cable to connector "PWR (X10)" on the HDD backplane
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane (see figure 53).
For the cable plan see section "Cabling" on page 339.
7.2.8.4 Concluding steps
Ê Insert all HDD/SSD modules, see section "Installing 2.5-inch HDD/SSD
modules" on page 123.
I Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
