6.3.3 Installing the dummy cover

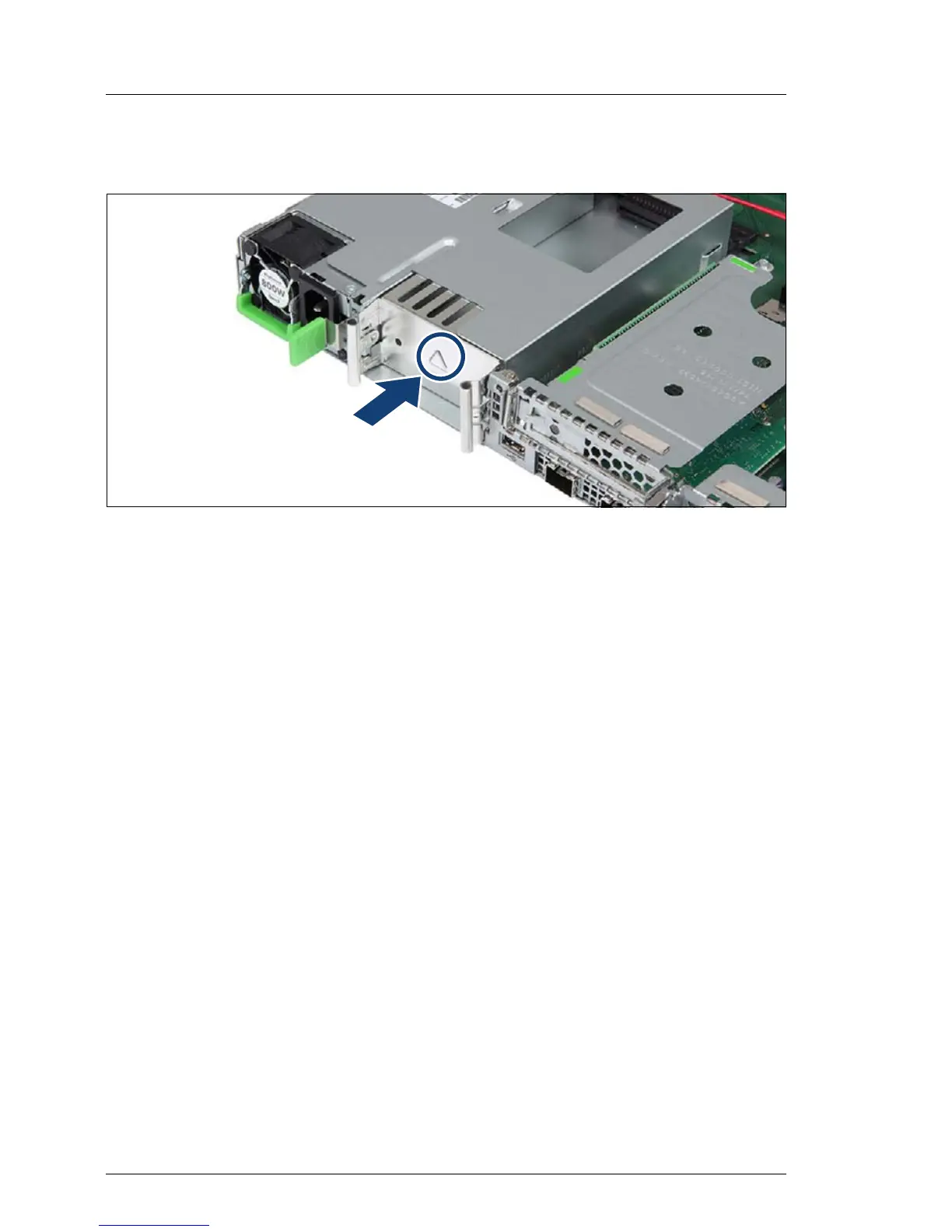

Figure 36: Installing the dummy cover
Ê Insert the dummy cover into the empty bay with the impressed arrow symbol
facing to the top (see circle).
Ensure that the upper rear cant of the dummy cover fits under the PSU cage.
Ê Push the dummy cover into its bay until it locks in place.
V CAUTION!
Always install dummy covers into unused bays to comply with
applicable EMC regulations and satisfy cooling requirements.
