With RAID controller:
7.2.4 Configuration with up to 10 HDD/SSD modules
I SAS HDD drives must not be populated above or below BC-SAS /
BC-SATA HDD drives. In order to avoid this configuration, please make
a free bay intentionally. For example, if only one SAS drive or one
BC-SAS / BC-SATA drive is ordered, this drive will be installed in
position 1 and position 2 will not be used.
SAS HDD drives and BC-SAS / BC-SATA HDD drives can be mixed as
long as SAS drives are not populated above or below BC-SAS /BC-SATA
HDD drives.
The same kind of HDD drives can be populated above or below each
other.
Mounting order

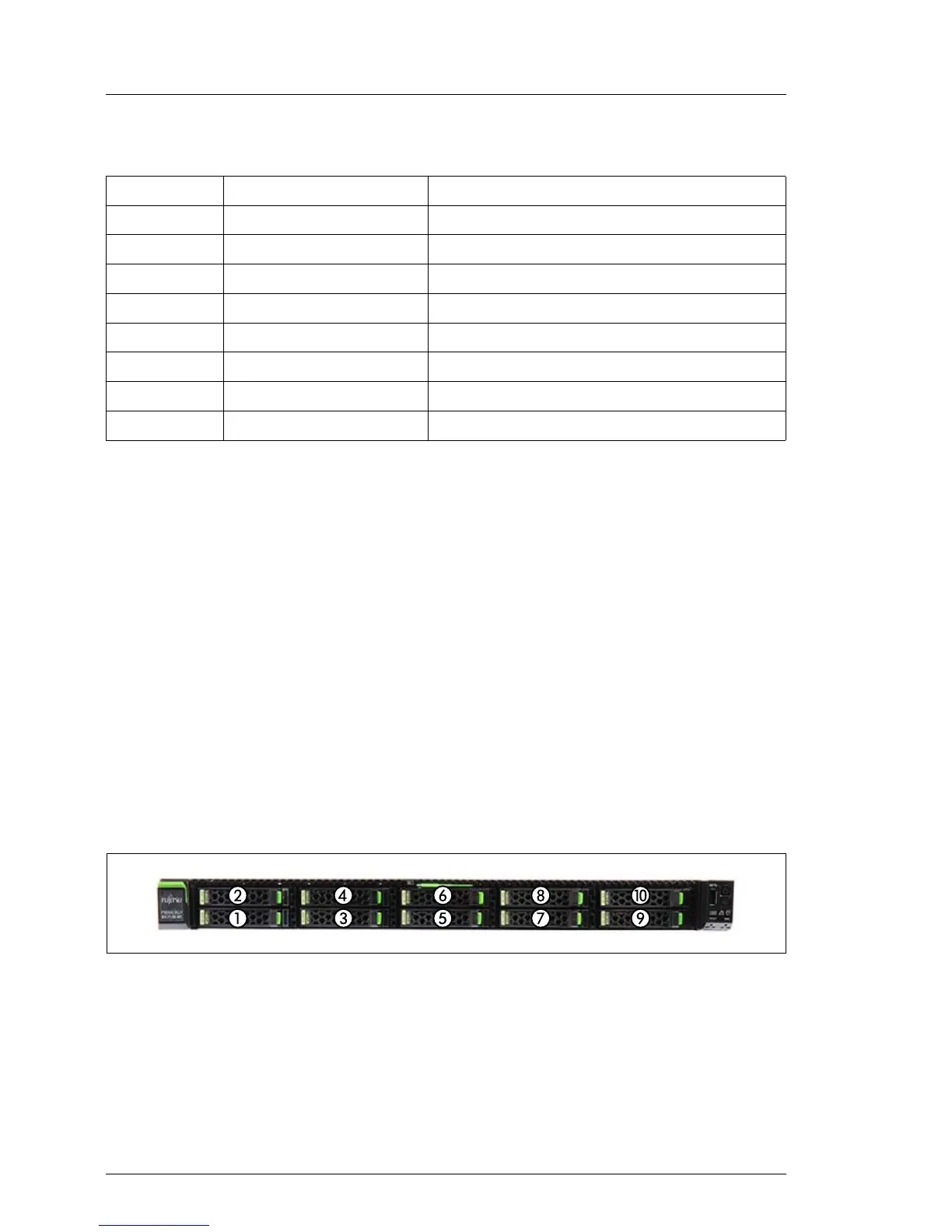

Figure 43: Mounting order with up to ten HDD/SSD bays
I The configuration rules described are necessary in order to obtain
optimum performance values and to ensure proper functionality of the
system.
Position Logical drive number ServerView RAID Manager display name
[1] 0 Vendor Product (0)
[2] 1 Vendor Product (1)
[3] 2 Vendor Product (2)
[4] 3 Vendor Product (3)
[5] 4 Vendor Product (4)
[6] 5 Vendor Product (5)
[7] 6 Vendor Product (6)
[8] 7 Vendor Product (7)
