Basic hardware procedures
4.9.2 Installing the fan sponges

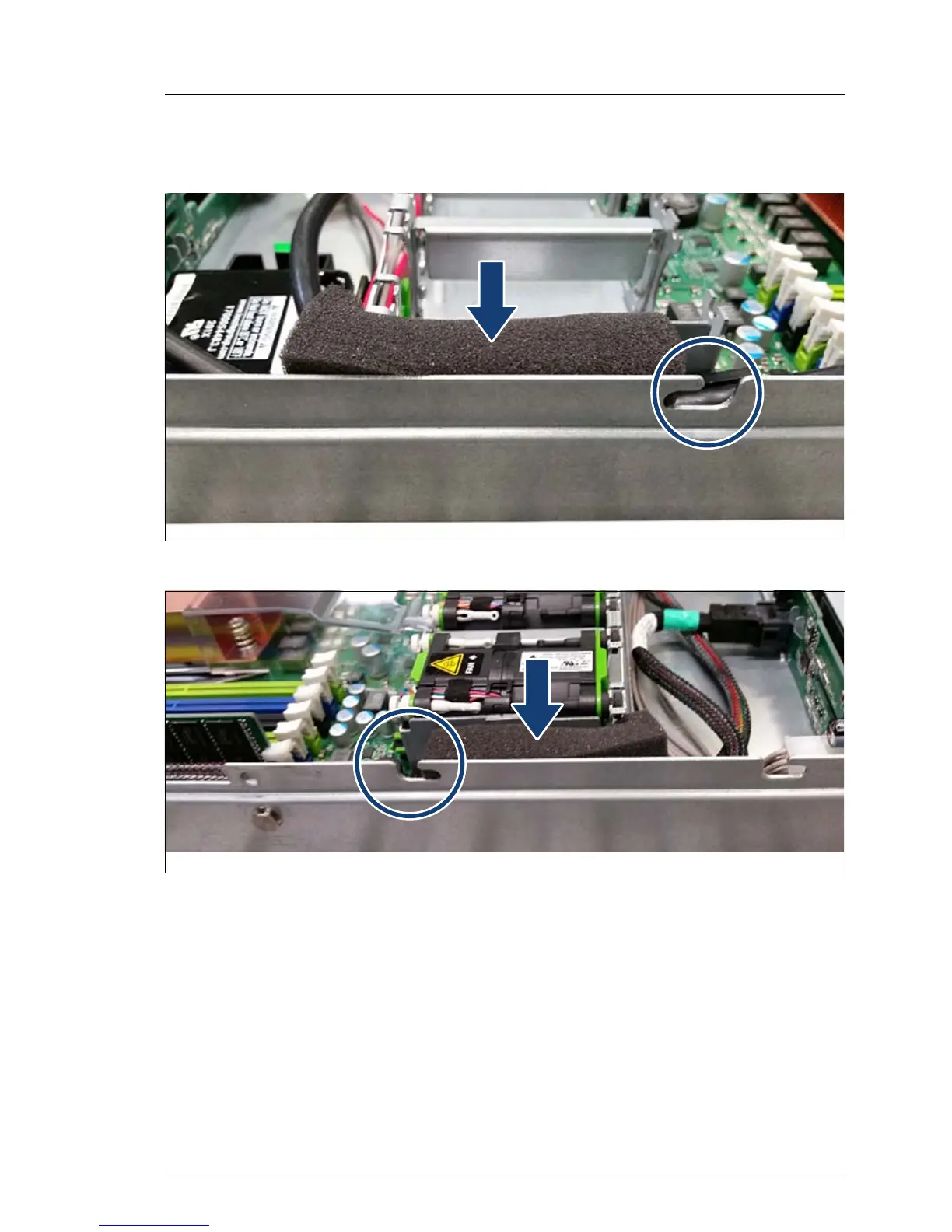

Figure 21: Installing the fan sponge 1
Figure 22: Installing the fan sponge 2
Ê Insert the fan sponges on the chassis sides. The recesses of the chassis
must be uncovered (see circles).
Ê Push the fan sponges downward above the cables. Make sure that the fan
sponges do not exceed the height of the base chassis.
