9.5.1.2 Removing the slot cover (only slot 2-4)

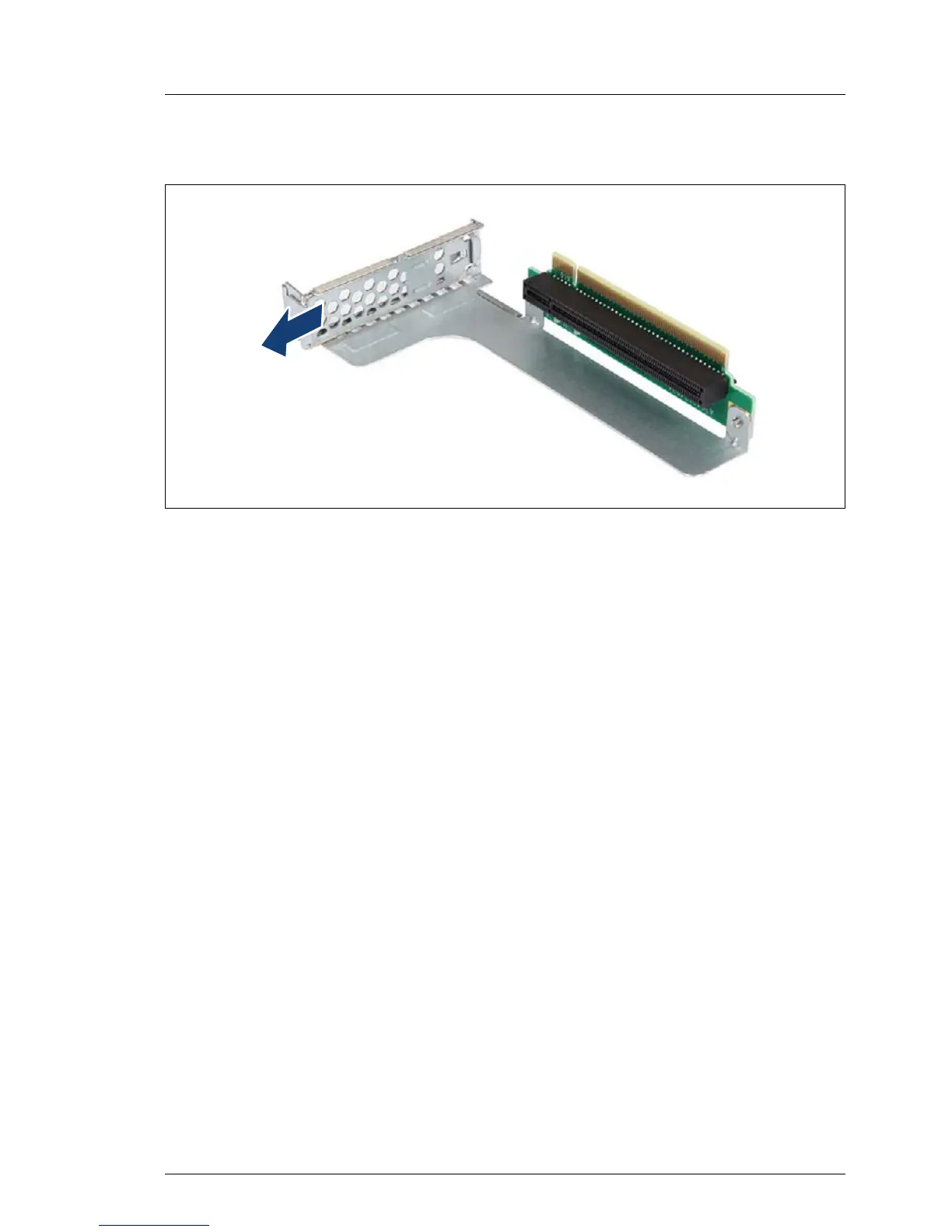

Figure 123: Removing the slot cover - example riser module 2
Ê Remove the slot cover.
V CAUTION!
Keep the slot cover for future use. If the expansion card is removed and
not replaced with a new one, the slot cover must be reinstalled due to
cooling, to comply with applicable EMC regulations and to protect
against fire.
9.5.1.3 Installing the expansion card
Ê Please read the documentation supplied with the expansion card.
Ê Slot 2-4: If applicable, install a slot bracket to the expansion card as
described in section "Installing a slot bracket" on page 170.
Ê Slot 1: If applicable, remove the slot bracket from the expansion card as
described in section "Removing a slot bracket" on page 172.
