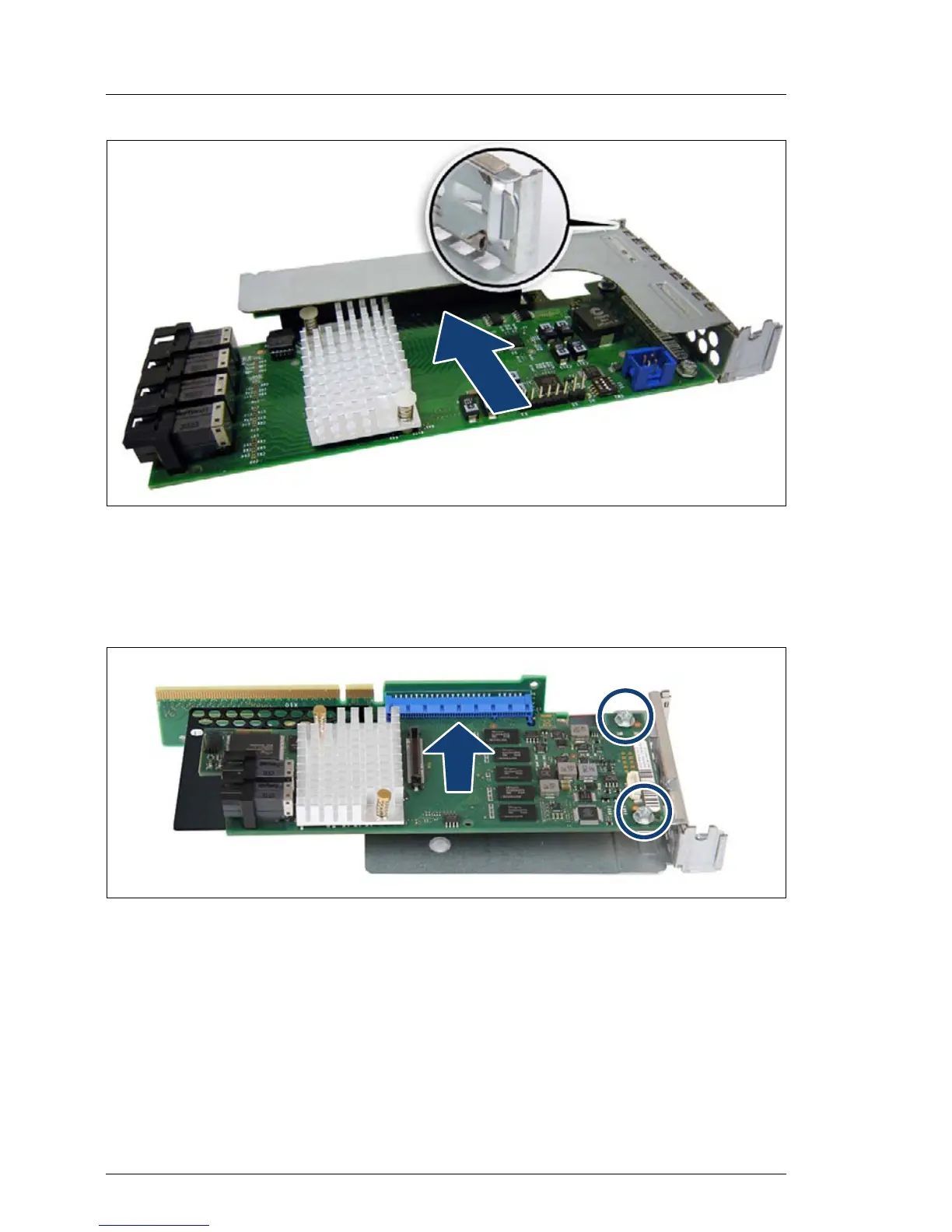

Figure 124: Installing an expansion card - example riser module 2, slot 3
Ê Slot 2-4: Carefully press the expansion card into the riser card slot, until it
clicks into place. Make sure that the lug on the slot cover clicks into place in
the corresponding bracket (see close-up).
Figure 125: Installing an expansion card - example riser module 1, slot 1
Ê Slot 1: Carefully press the expansion card into the riser card slot, until it
clicks into place. Fasten the expansion card with two screws (see circles).
