13.3.2.2 Removing the front VGA board

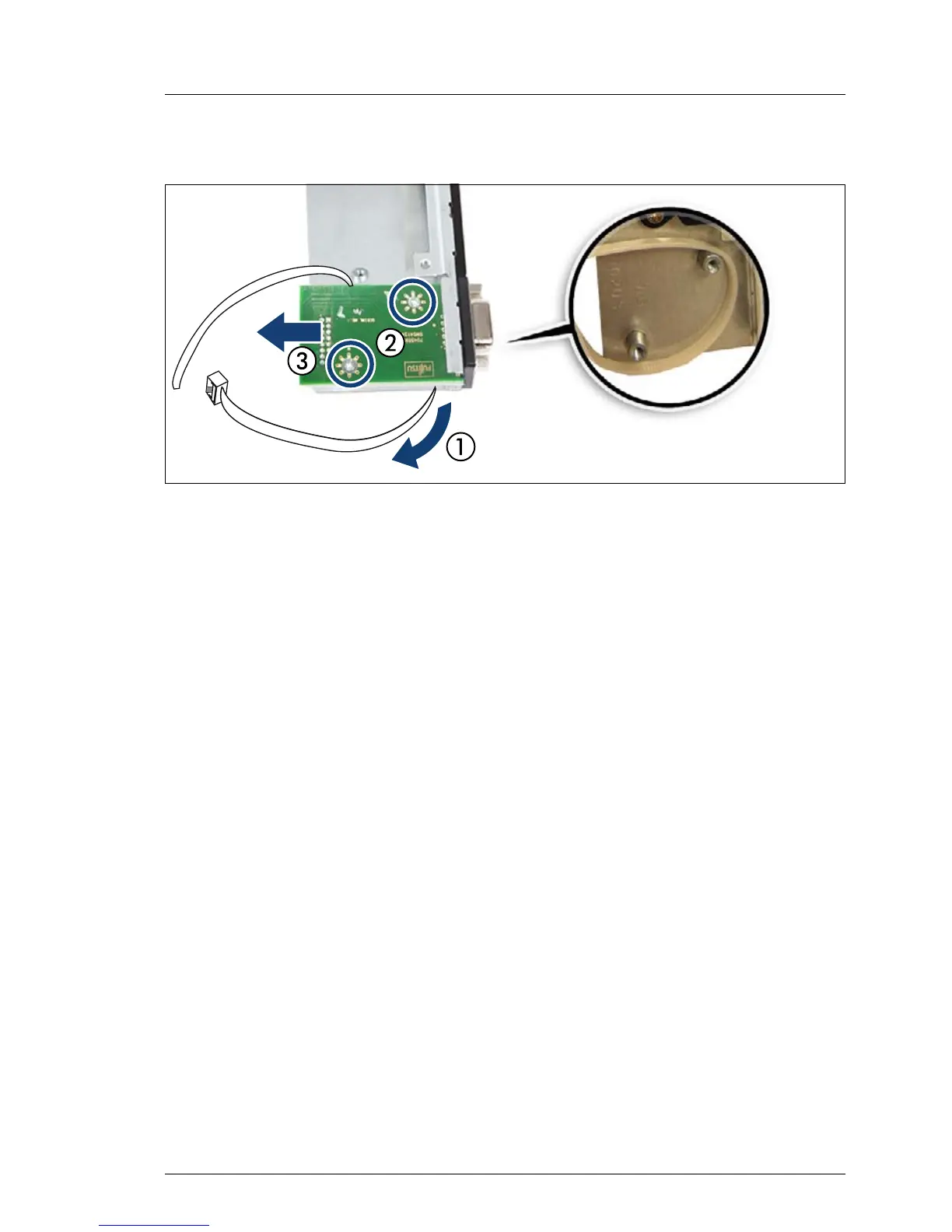

Figure 204: Removing the front VGA board
Ê Pull out the cable tie (1).
Ê Remove the two screws (2) and remove the front VGA board (3).
13.3.2.3 Installing the dummy cover
Ê Install the dummy cover (see figure 202).
13.3.2.4 Concluding steps
Ê "Installing the front panel module" on page 278
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
