4.10.2 Installing the CPU air guides

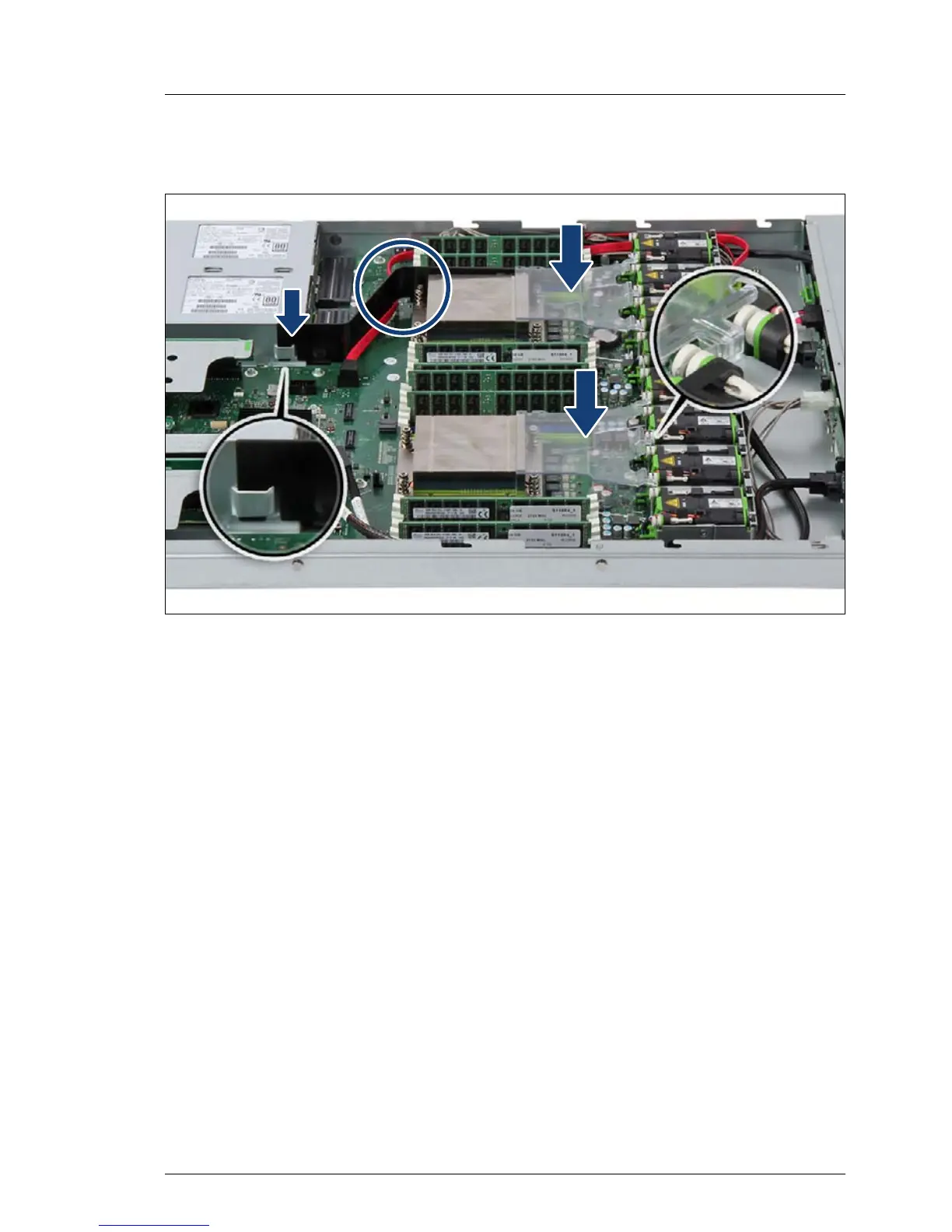

Figure 24: Installing the CPU air guides
Ê Carefully place the CPU air guides on the CPUs. Notice the hooks fit over
the cant of the fan cage (see close-up).
Ê Only for air guide on CPU 2: insert the hook of the extension in the bracket
on the PSU cage (see close-up). If applicable, route cables (example shows
SATA cable for ODD) through the recess of the air guide (see circle).
