Fujitsu PRIMERGY RX2530 M1 Upgrade And Maintenance Manual

RX2530 M1 Upgrade and Maintenance Manual 331
System board and components
Ê Remove the SATA DOM (if applicable), see section "Removing the SATA
DOM" on page 321.
Ê Remove the iRMC microSD card (if applicable), see section "Removing the
iRMC microSD card" on page 325.
15.7.1.2 Removing the defective system board
Ê Disconnect all cables from the system board.

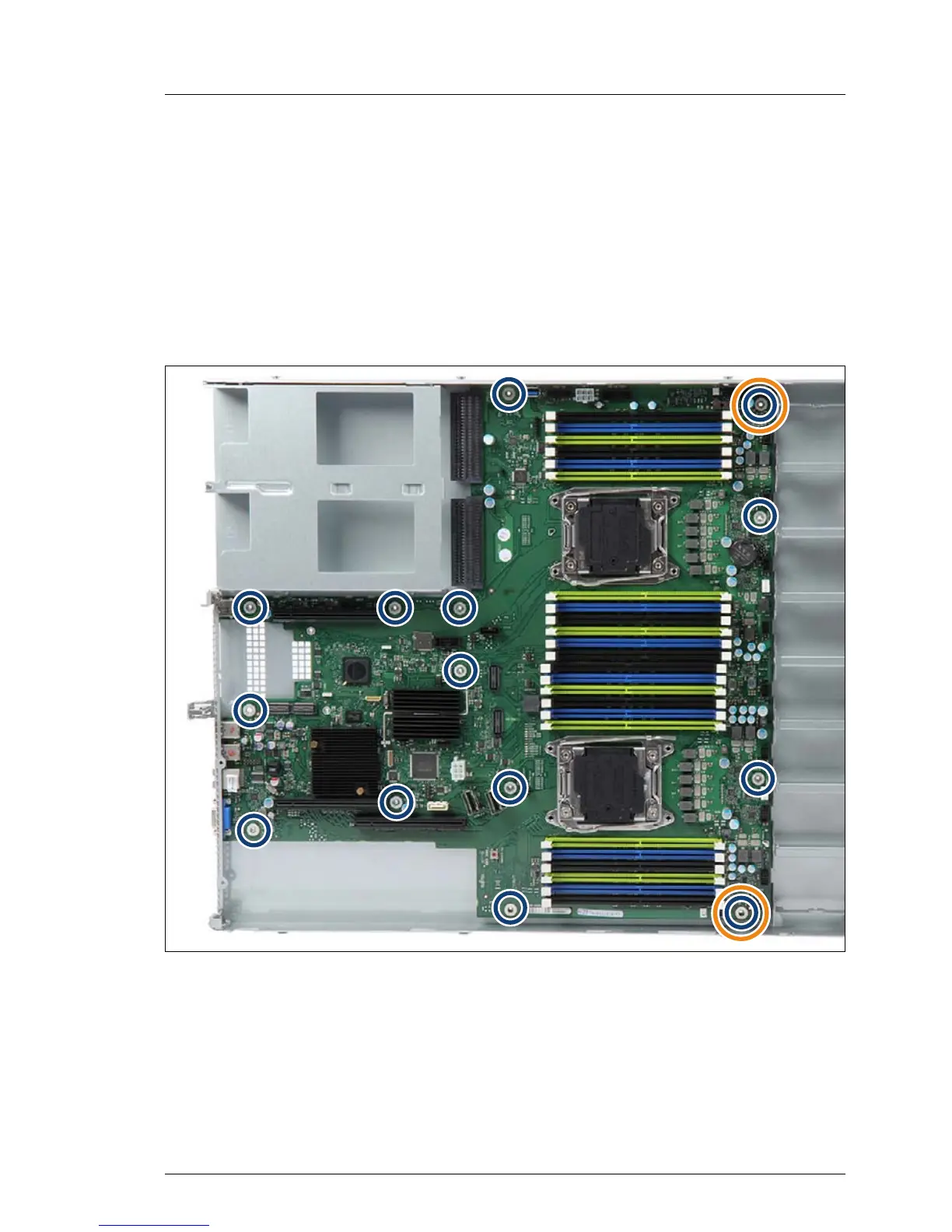

Figure 241: Position of the screws
Ê Remove the 14 screws from the system board.
