286 Upgrade and Maintenance Manual RX2530 M1
Front panel
Ê "Removing the fan sponges" on page 66 (if applicable)
13.4.1.2 Removing the front panel on QRL
I The front panel on QRL and the front panel cable are combined in one
spare part.

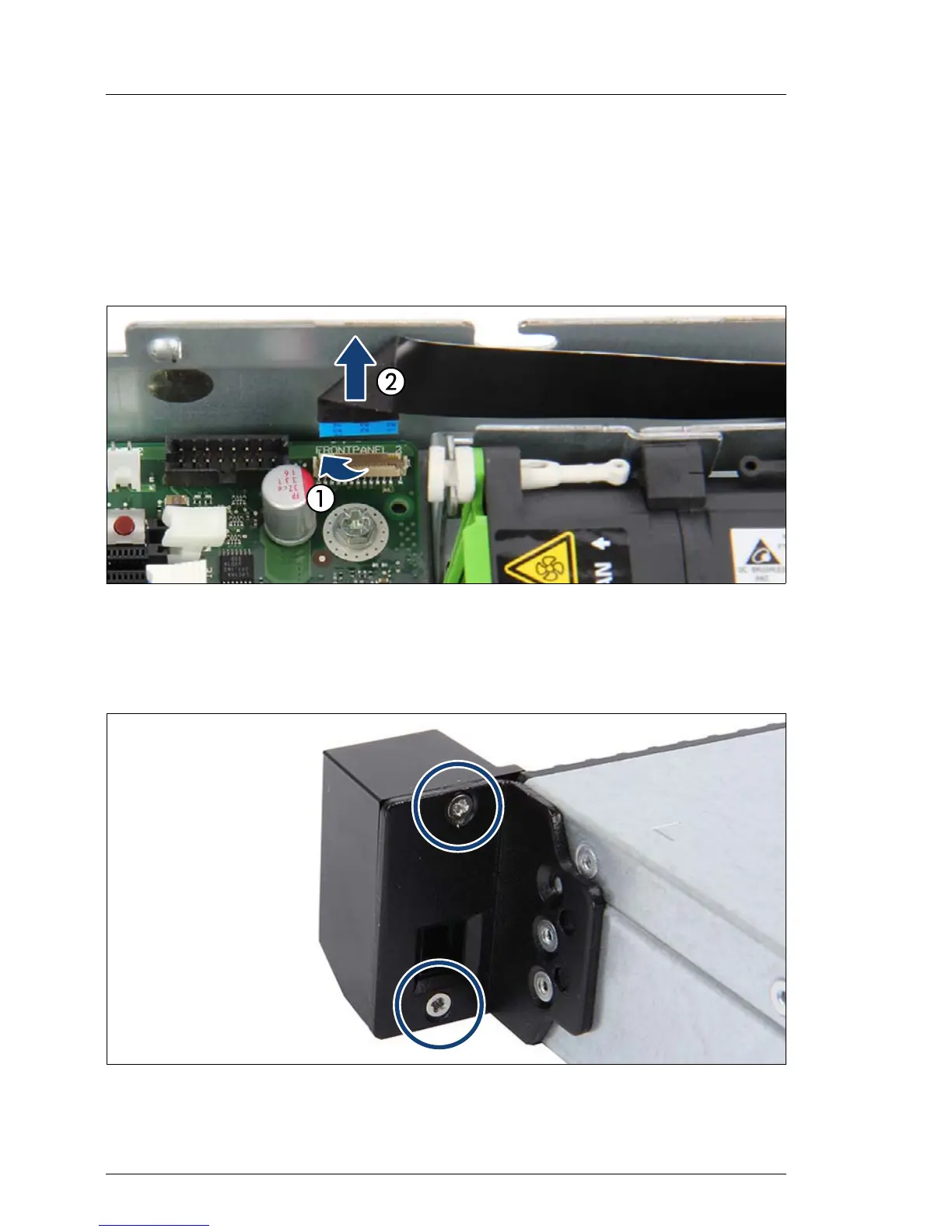

Figure 205: Disconnecting the front panel cable
Ê Pull up the locking bar (1).
Ê Remove the front panel cable (2).
Figure 206: Removing the front panel on QRL (A)
Ê Remove the two screws (see circles).
