17.2.1.4 I/O panel indicators

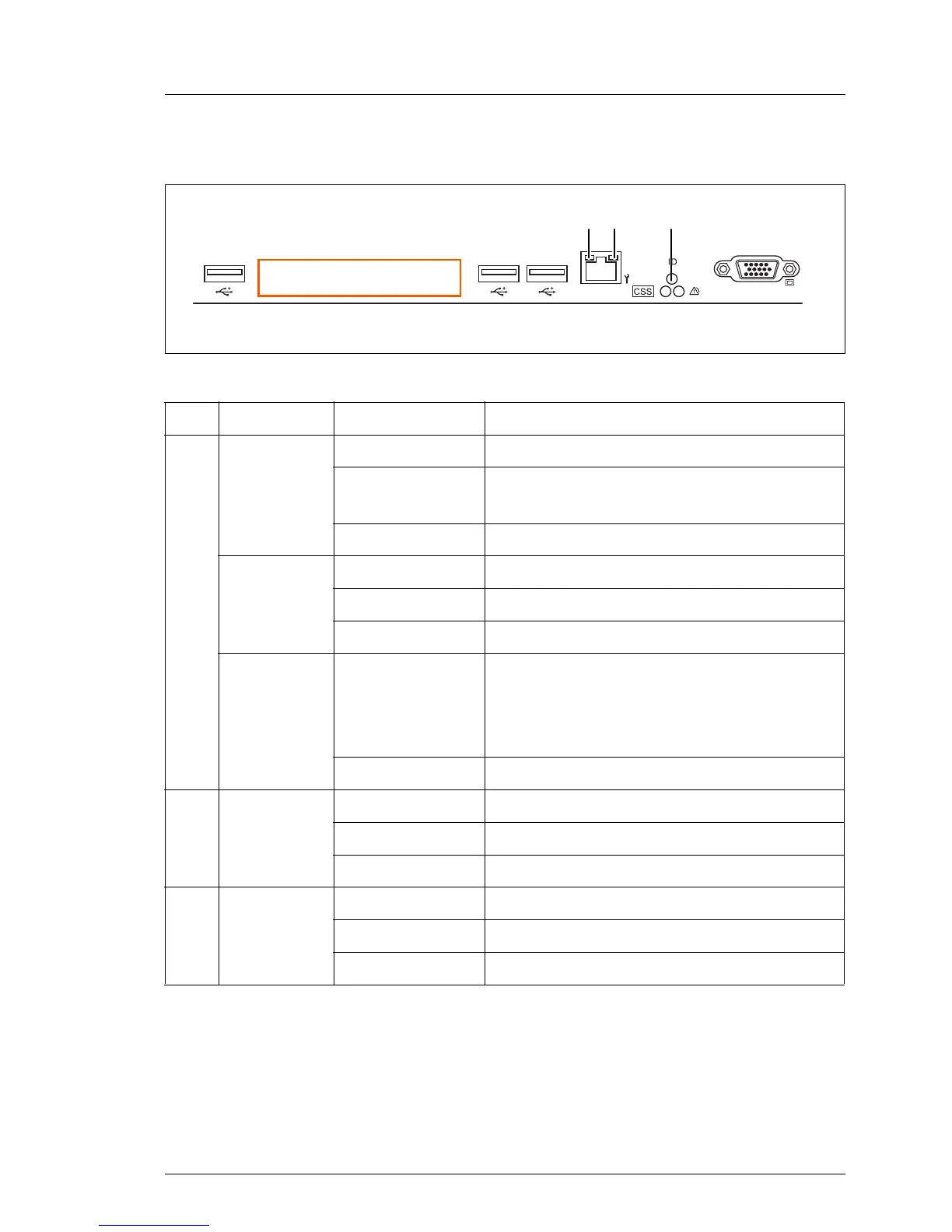

Figure 267: I/O panel indicators
Pos. Indicator Status Description
1
Global error
indicator
off no critical event (non-CSS component)
orange on
prefailure detected (non-CSS
component)
orange flashing non CSS component failure
CSS
indicator
off no critical event (CSS component)
orange on prefailure detected (CSS component)
orange flashing CSS component failure
ID indicator
blue on
server has been highlighted using
ServerView Operations Manager, iRMC
web frontend, or the ID button on the
front panel for easy identification
blue flashing local monitor is not active
2
LAN link /
transfer
indicator
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
3
LAN speed
indicator
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
햲
Management
LAN
Indicators
VGA
2x USB 3.0
USB 2.0
Dynamic LoM (optional)
햳햴
