12.2.2 Removing the dummy cover

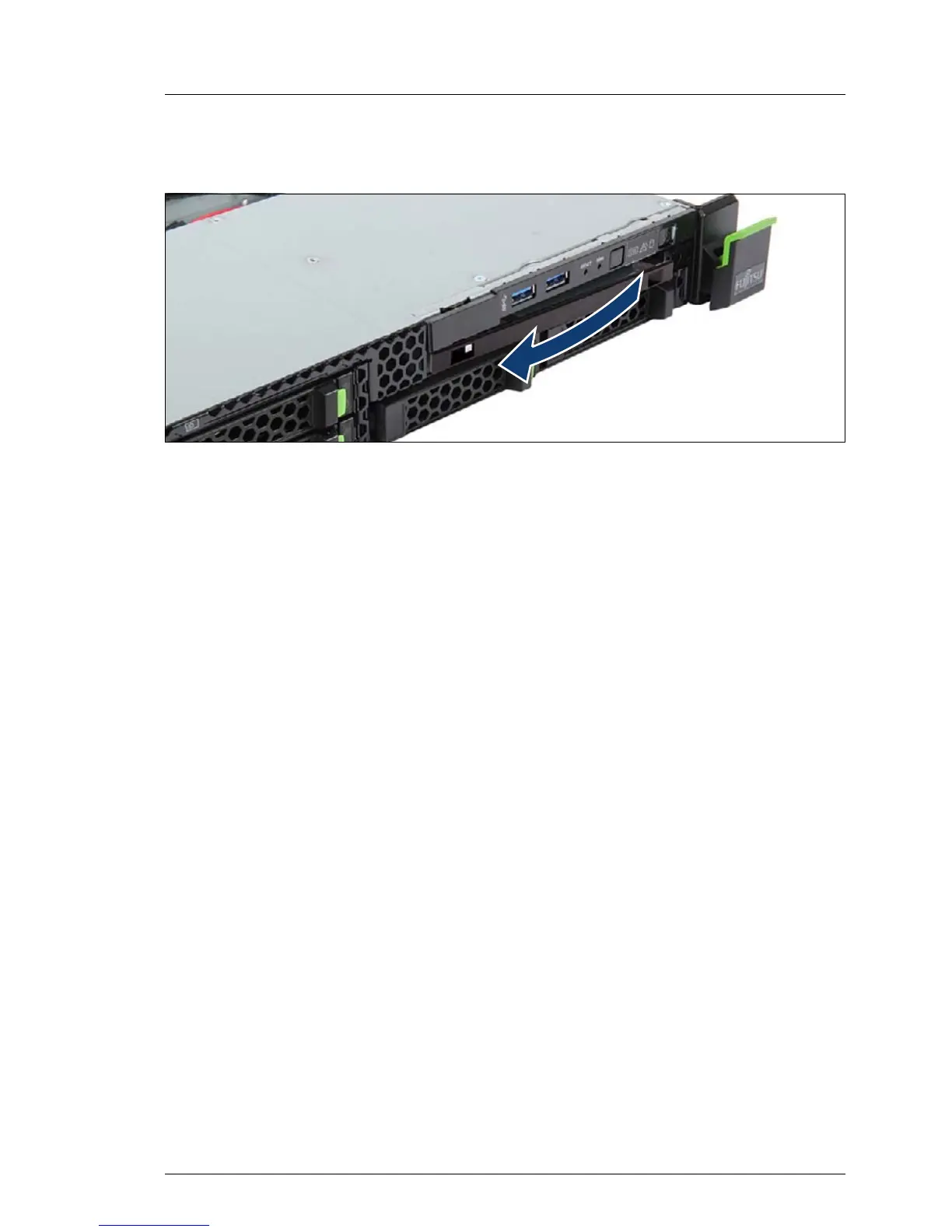

Figure 185: Removing the dummy cover
Ê Pull the dummy cover out of the bay.
V CAUTION!
Keep the dummy cover for future use. If you remove the accessible drive
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
12.2.3 Installing the ODD
Ê If no ODD has been installed before:
Ê Remove the two screws and take the ODD latch from the fan bridge (see
figure 184).
