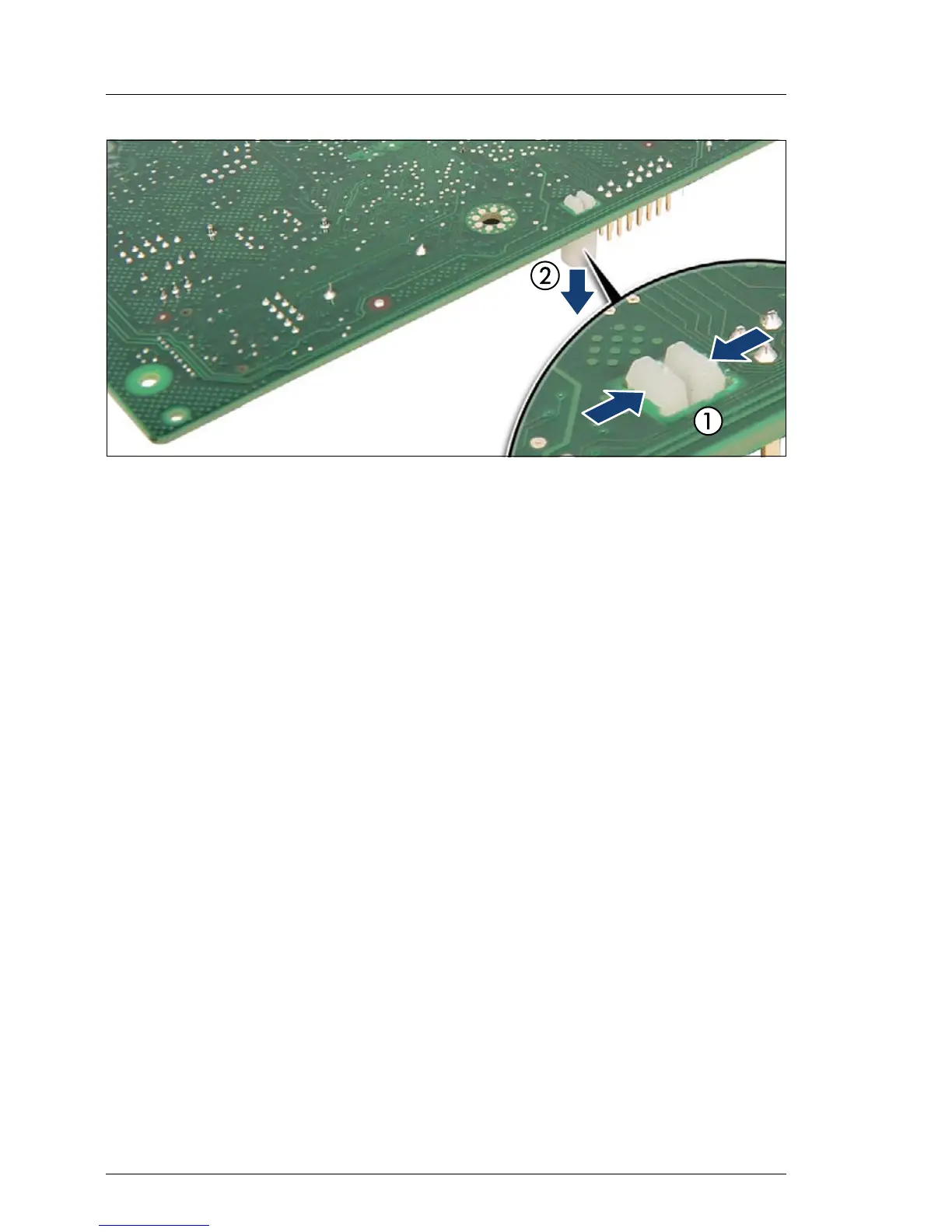

Figure 233: Removing the TPM spacer
Ê Using a flat nose pliers, press together the hooks on the TPM spacer (1, see
close-up) and remove it from the system board (2).
I If the TPM is to be replaced, the TPM spacer may remain on the
system board.
15.4.2.3 Concluding steps
Ê "Installing the new system board" on page 332
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
