RX2530 M
1
Upgrade and Maintenance Manual
307
System board and comp
onents
15.3.3.3
Inst
alling the new UFM

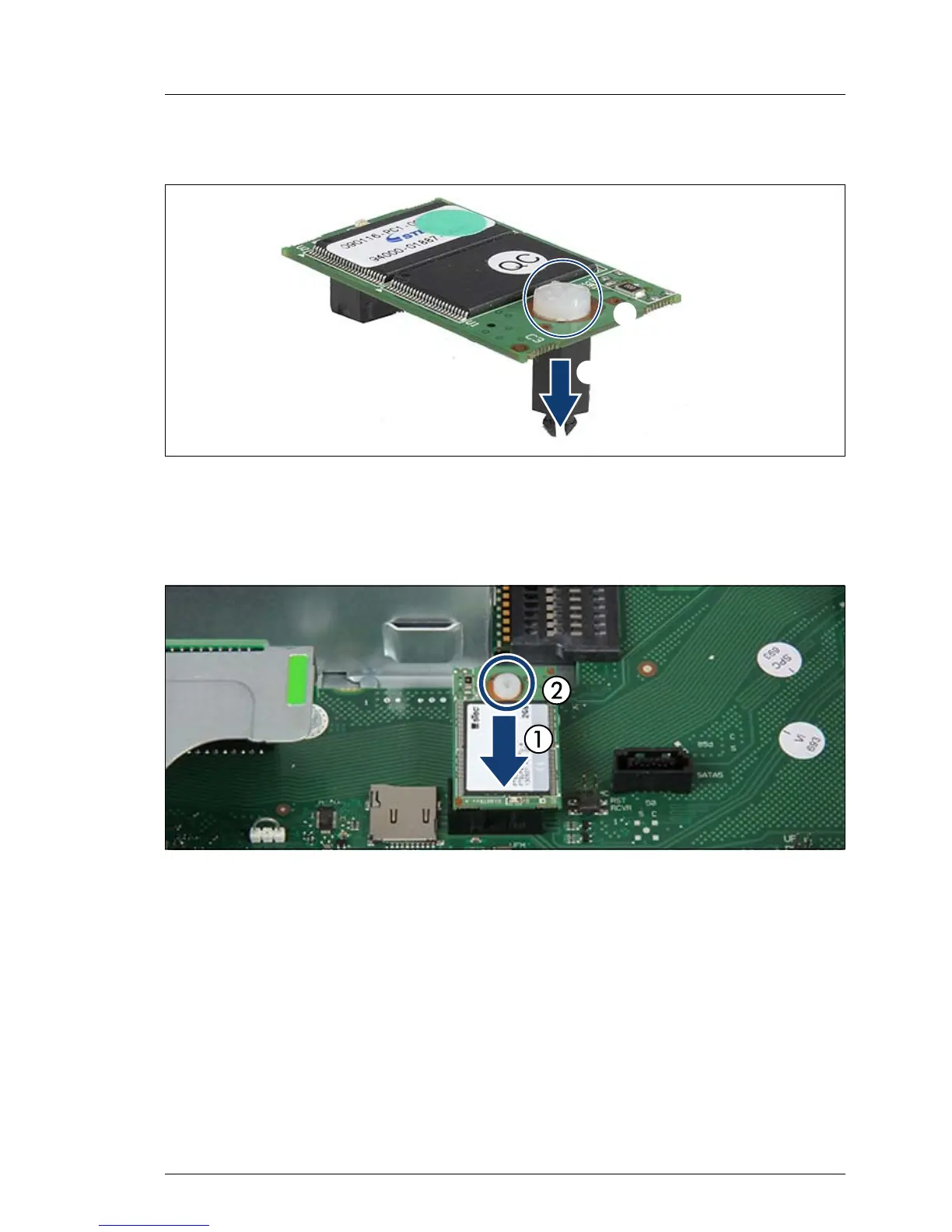

Figure 225: Removing the UFM spacer
Ê
Remove the nylon screw from the UFM (
1).
Ê
Remove the UFM spacer (2).
Figure 226: Installing t
he UFM
Ê
Connec
t the UFM to the system board and the re
maining UFM spacer (1).
Ê
Fas
ten the UFM to the UFM spacer with the nylon screw (2).
/
