Ê If applicable, remove the front VGA board with the front VGA connector as
described in section "Removing the front VGA board" on page 283.
13.2.1.3 Installing the front panel module
Ê If applicable, install the front VGA board with the front VGA connector as
described in section "Installing the front VGA board" on page 281.

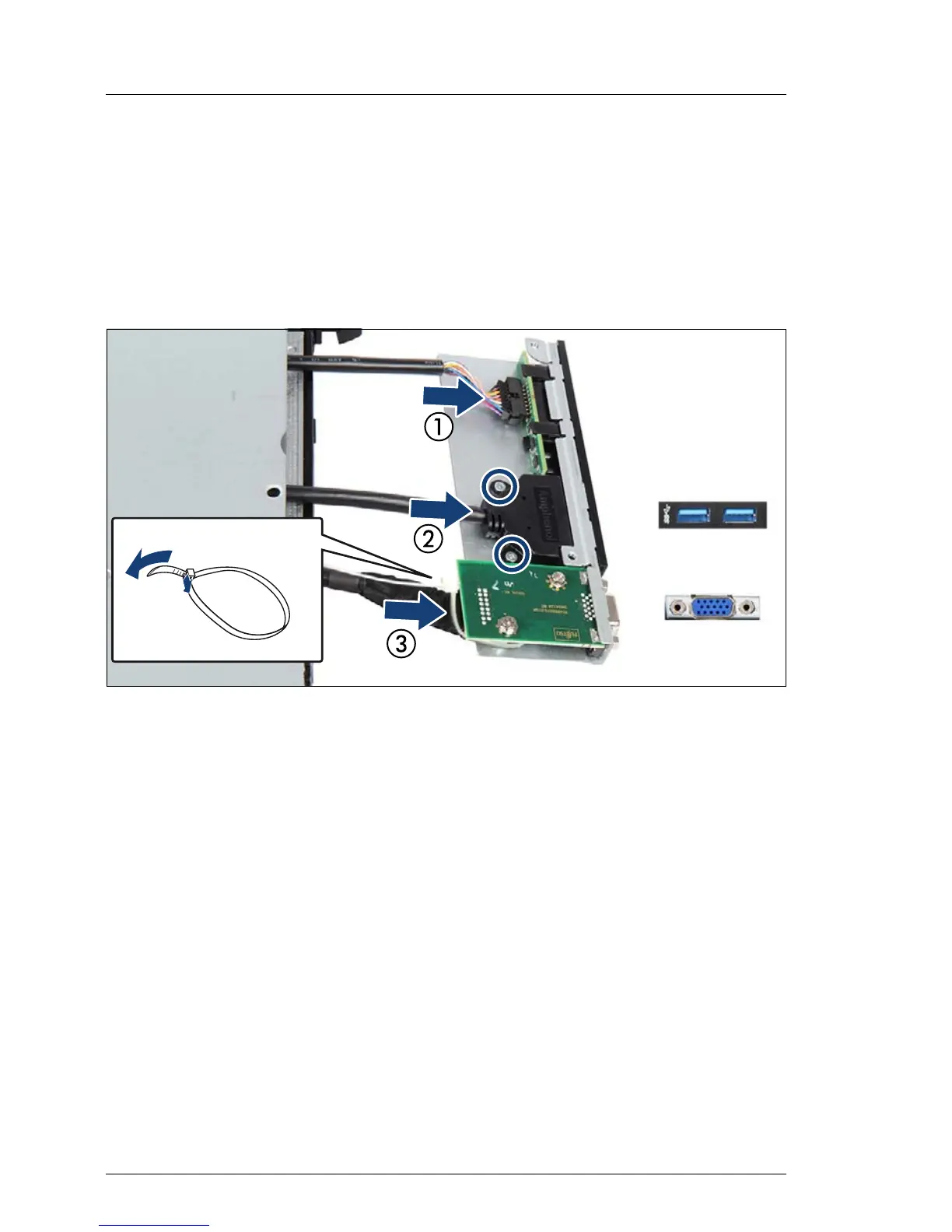

Figure 198: Connecting cables to the front panel module
Ê Connect the front panel cable (1).
I If the front panel cable was secured with a cable tie, secure the front
panel cable with the cable tie.
Ê Push the front USB connector in the corresponding recess and fasten the
front USB cable with two screws (2).
Ê If applicable, connect the front VGA cable to the front VGA board and secure
it with the cable tie (3).
