Front panel

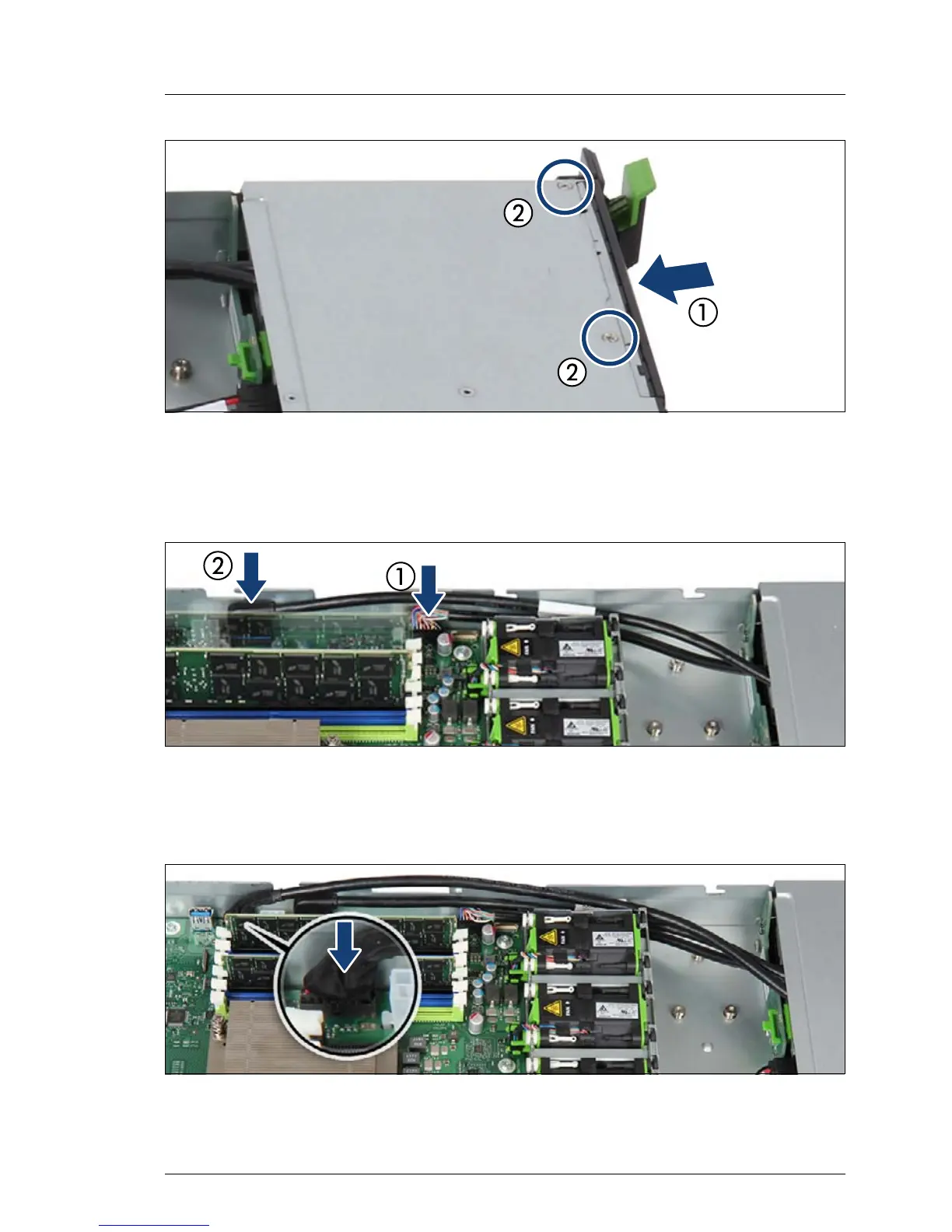

Figure 199: Installing the front panel module
Ê Push the front panel module in its bay (1).
Ê Fasten the front panel module with two screws (2).
Figure 200: Connecting the cables (A)
Ê Connect the front panel cable (1) and the front USB cable (2) to the system
board.
Figure 201: Connecting the cables (B)
Ê If applicable, connect the front VGA cable to the system board.
