Before you start
2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
Screw driver /
Bit insert
Torque
Screw Usage Type
Phillips
PH2 / (+) No. 2
0.6 Nm
Slot bracket to
chassis,
system board,
SAS expander
board
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Phillips
PH2 / (+) No. 2
0.6 Nm
Slot bracket to
expansion
card
M3 x 3.5 mm
(silver)
C26192-Y10-C151
Phillips
PH2 / (+) No. 1
0.6 Nm
3.5-inch HDD
UNC
6-32 x 5 mm
(black)
C26192-Y10-C200
Phillips
PH1 / (+) No. 1
0.4 Nm
Front VGA,
2.5-inch HDD,
DynamicLoM
module
M3 x 3.5 mm
(silver)
C26192-Y10-C102
Special bit insert
0.4 Nm
TPM screw
REM 3 x 15 mm
(black)
C26192-Y10-C176
Torx Plus 6
0.2 Nm
ODD latch
M2 x 4 mm
(black)
C26192-Y10-C166

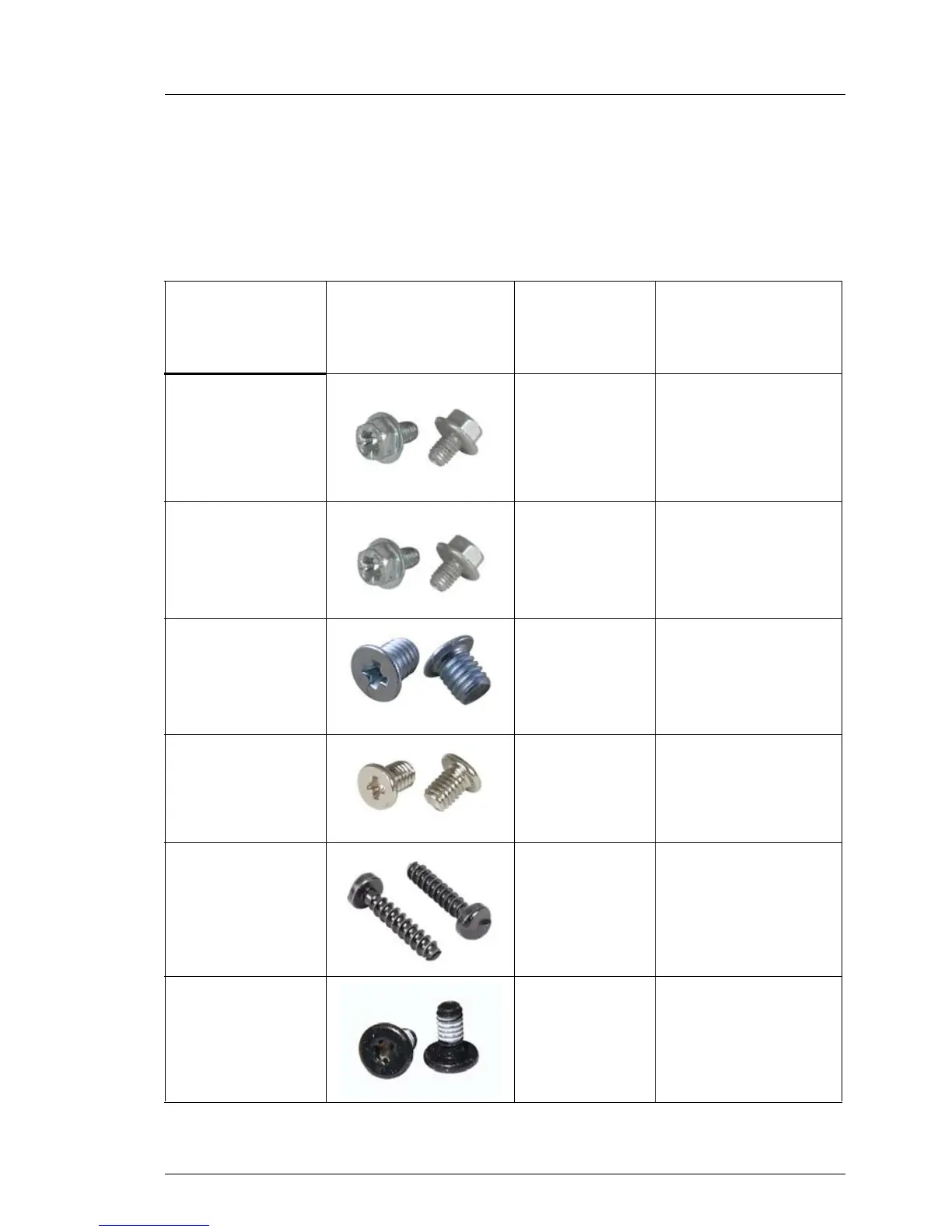

Table 2: List of used screws (not applicable for the Japanese market)
