RX2530 M1 Upgrade and Maintenance Manual 253
Processors
11.3.3 Removing the defective processor

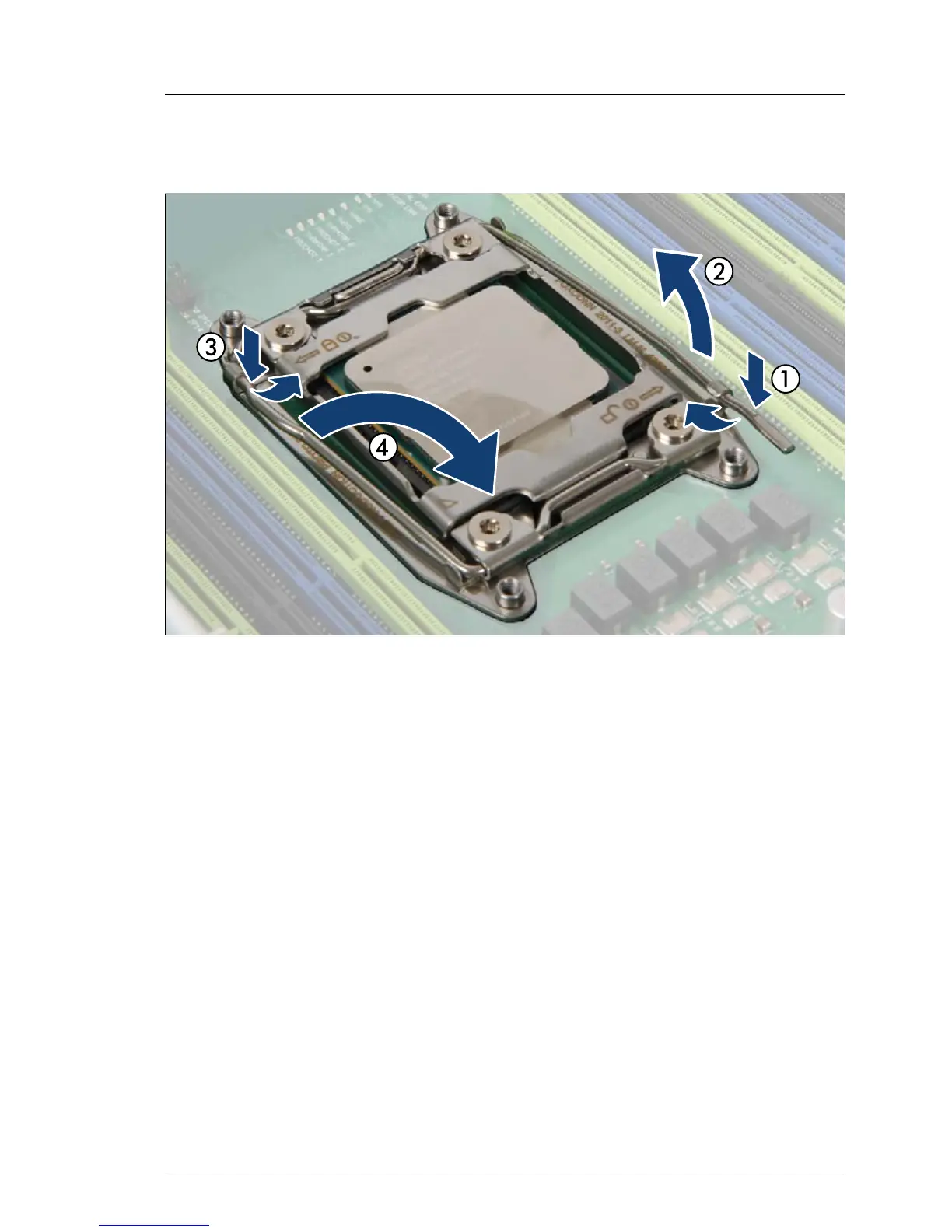

Figure 174: Opening socket release levers
Ê Unlatch the socket release lever 1 marked Open 1st by pushing it down and
away from the socket (1).
Ê The socket release lever 1 will slightly lift up (2).
Ê Unlatch the socket release lever 2 marked Close 1st by pushing it down and
away from the socket (3).
Ê Fully fold back the socket release lever 2 (4).
