7.2.5 Installing 2.5-inch HDD/SSD modules
7.2.5.1 Preliminary steps
Ê Locate the correct drive bay as described in section "2.5-inch HDD/SSD
configurations" on page 117.
7.2.5.2 Removing a 2.5-inch HDD/SSD dummy module
I In configuration with only one 4 x 2.5-inch HDD backplane dummy locks
are installed to make it impossible to equip the bays with no HDD
backplane behind.

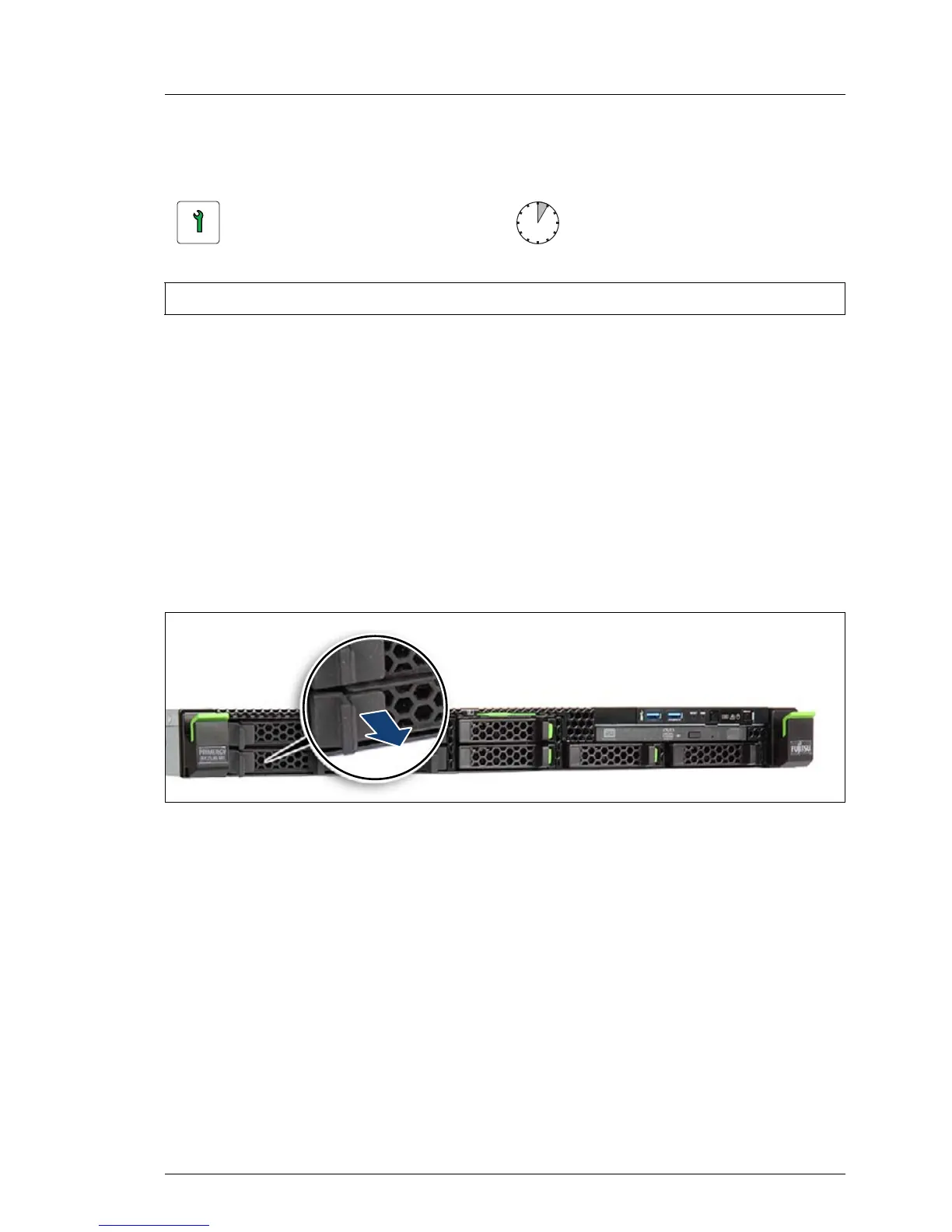

Figure 46: Removing dummy lock
Ê Only valid after upgrading the server with the second HDD backplane: pull
the dummy lock out of the dummy cover. Please be aware that the dummy
lock can be damaged.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
