122 Upgrade and Maintenance Manual RX2530 M1
Hard disk drives / solid state drives
HDD/SSD naming scheme (with PCIe-SSDs)
I In the configuration with up to 10 HDD/SSD modules, the first four HDD
bays can be equipped with PCIe-SSDs, if a PCIe switch has been
installed.

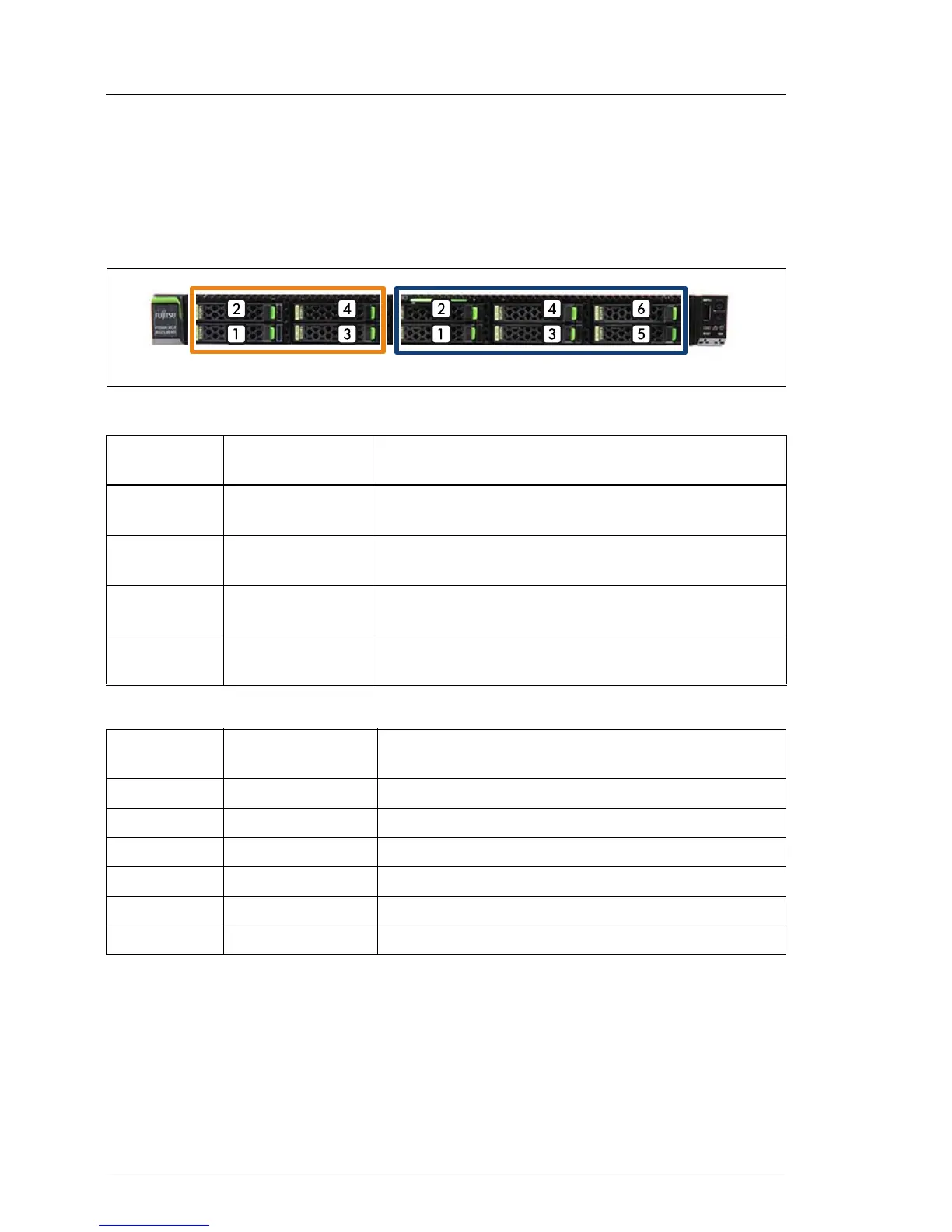

Figure 45: Naming scheme with up to four PCIe-SSDs
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
[1] 0
SSD PCIe3 Main (1):
SSD PCIe3 Capacity Main 2.5" H-P EP (0)
[2] 1
SSD PCIe3 Main (2):
SSD PCIe3 Capacity Main 2.5" H-P EP (0)
[3] 2
SSD PCIe3 Main (3):
SSD PCIe3 Capacity Main 2.5" H-P EP (0)
[4] 3
SSD PCIe3 Main (4):
SSD PCIe3 Capacity Main 2.5" H-P EP (0)
Position
Logical drive
number
ServerView RAID Manager display name
[1] 4 Vendor Product (0)
[2] 5 Vendor Product (1)
[3] 6 Vendor Product (2)
[4] 7 Vendor Product (3)
[5] 8 Vendor Product (4)
[6] 9 Vendor Product (5)
PCIe-SSD HDD/SSD
