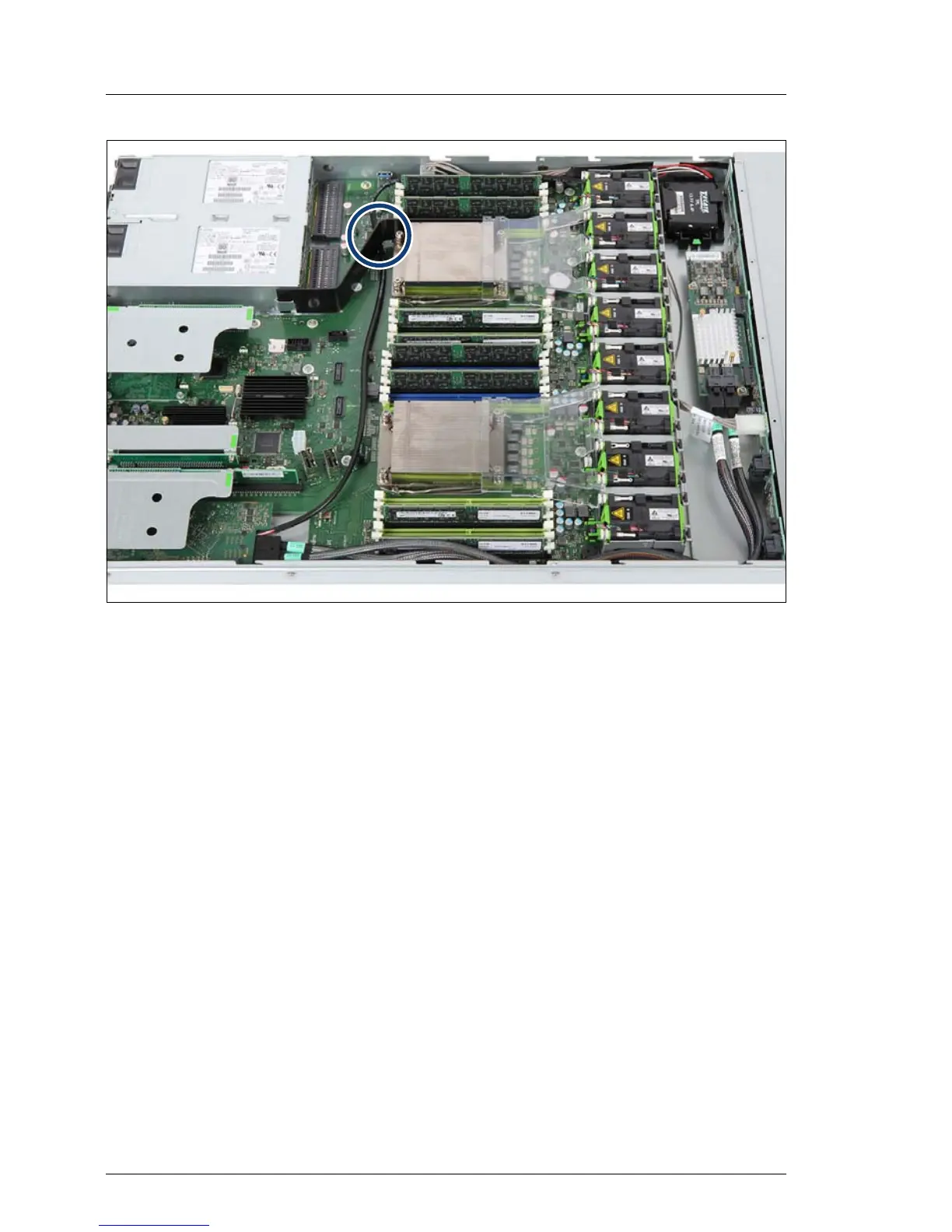

Figure 146: Routing the FBU cable
Ê Route the FBU cable as shown in the figure.
I The FBU cable must be leaded through the recess of the air guide (see
circle).
9.6.1.4 Concluding steps
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Updating RAID controller firmware" on page 82
Ê "Enabling SVOM boot watchdog functionality" on page 89
Ê "Switching on the server" on page 61
I The recalibration of the FBU starts automatically, and finishes within a
few minutes.
