RX2530 M1
Upgrade and Maintenance Manual 339
Cables
16.2 Cabling

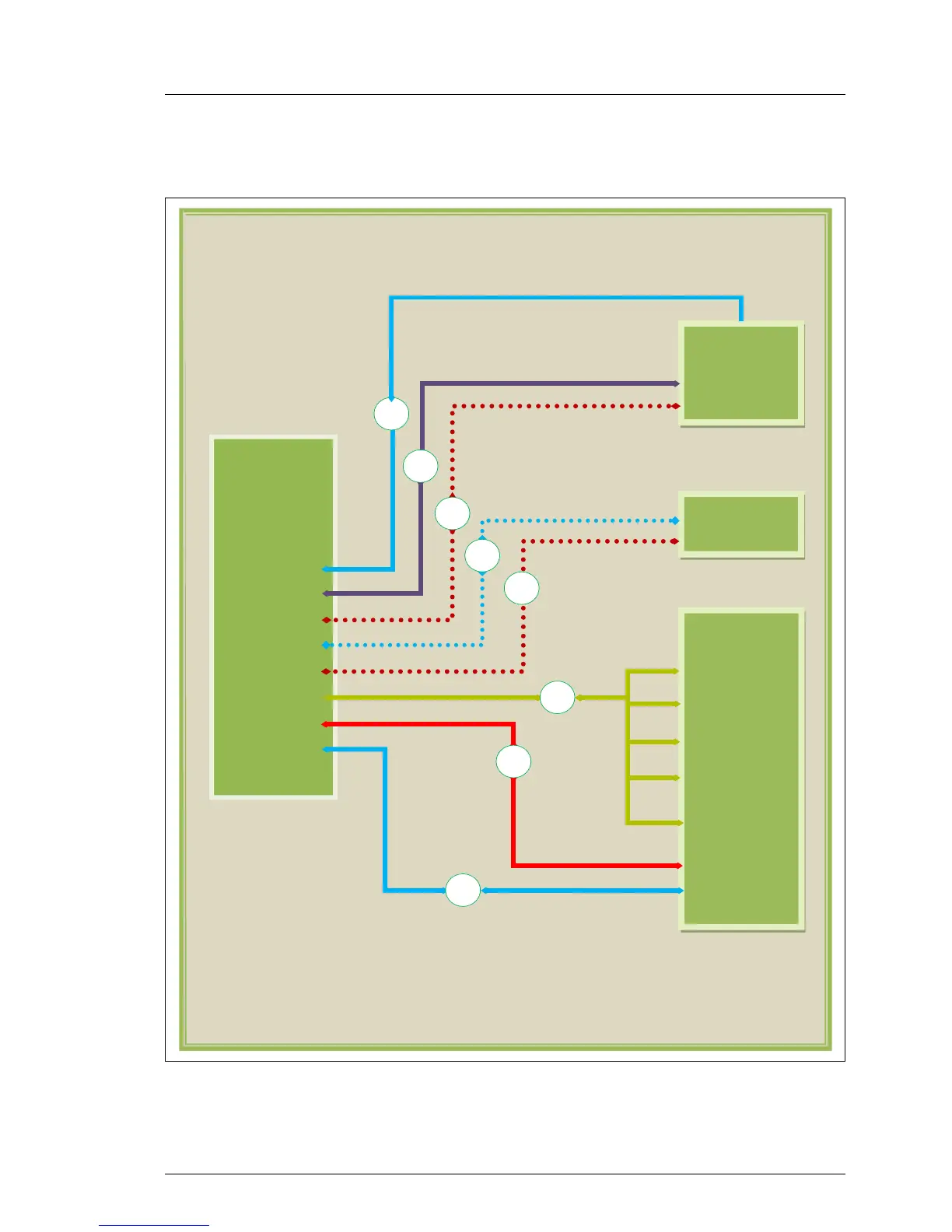

Figure 243: Configuration 1: 4 x 3.5-inch HDDs, SATA onboard
SAS BP
A3C40157818
4 x 3.5“
P1
P2
P3
P4
PWR
SMBus
SGPIO
D3279
HDD MLC1
Frontpanel
Front USB
Front VGA
ODD Data
ODD PWR
HDD PWR
SMBus
DVD
(opt.)
Frontpanel
+ 2x USB
Front USB
Front VGA
(
o
p
tional
)
C1
Data
PWR
C10
C9
C3
C6
C5
C8
C7
