4.4.3 Removing the top covers
Removing the housing cover

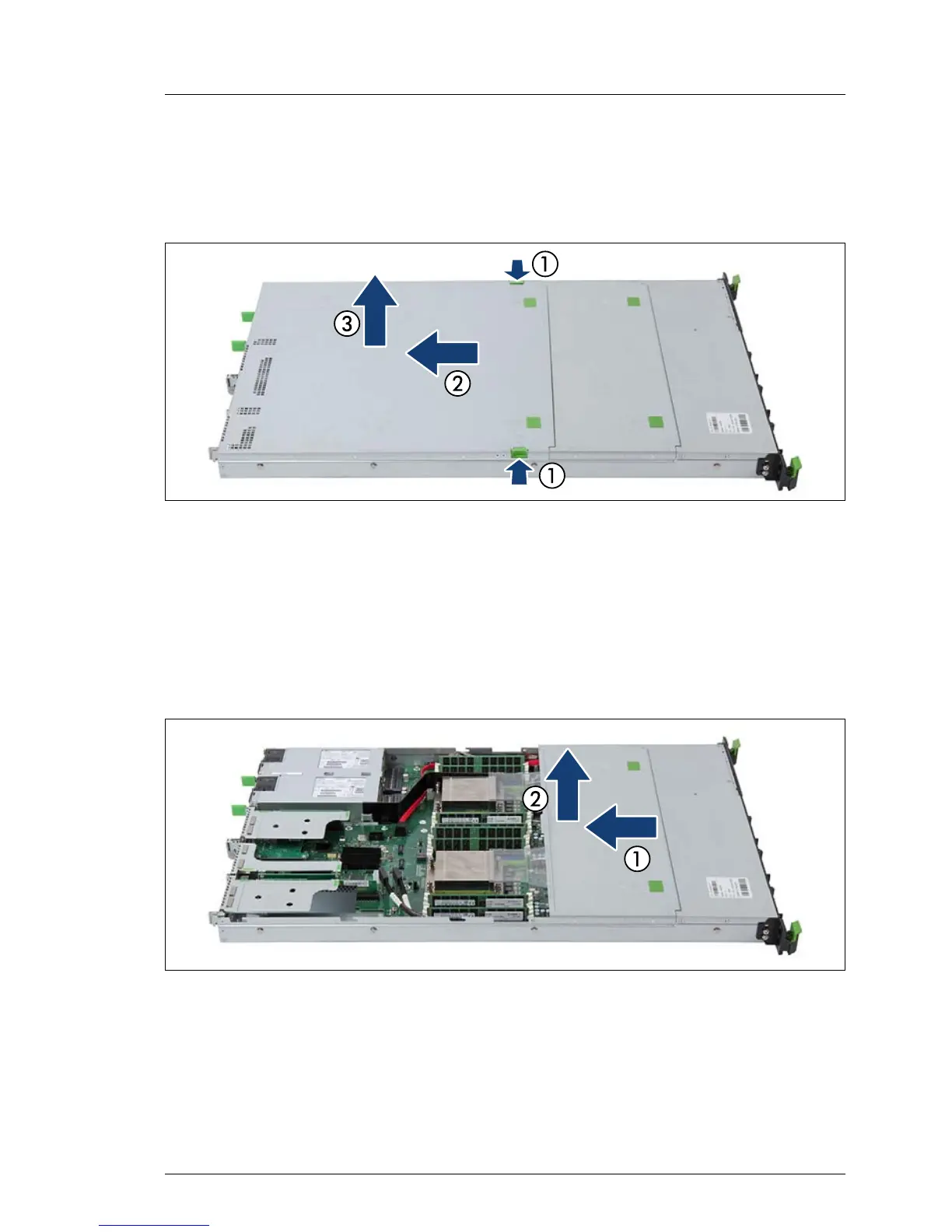

Figure 5: Removing the housing cover
Ê Push green touch points inside (1).
Ê Push the housing cover as far as it will go in the direction of the arrow (2).
Ê Lift off the housing cover upward (3).
Removing the fan cover
Figure 6: Removing the fan cover
Ê Push the fan cover as far as it will go in the direction of the arrow (1).
Ê Lift off the fan cover upward (2).
