Fujitsu PRIMERGY RX2530 M1

RX2530 M1 Upgrade and Maintenance Manual 275
Front panel
13.2.1.2 Removing the front panel module

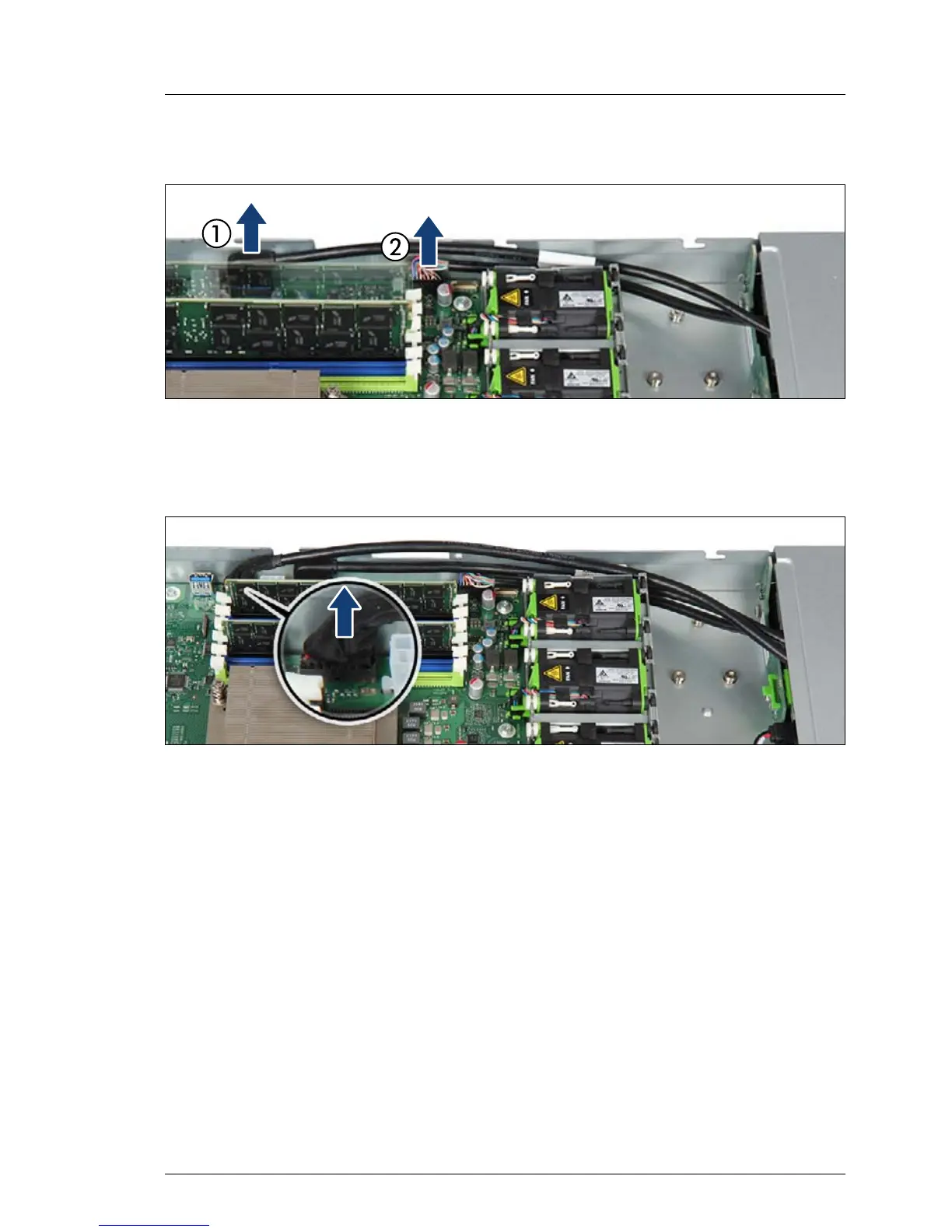

Figure 193: Disconnecting the cables (A)
Ê Disconnect the front USB cable (1) and the front panel cable (2) from the
system board.
Figure 194: Disconnecting the cables (B)
Ê If applicable, disconnect the front VGA cable from the system board.
