7.2.8.2 Removing the defective 4 x 2.5-inch HDD backplane
I For configurations with up to four 2.5-inch HDDs/SSDs, please refer to:
section "Left side 4 x 2.5-inch HDD backplane (A3C40157852)" on
page 130.
For configurations with up to eight 2.5-inch HDDs/SSDs, please refer to:
section "Left side 4 x 2.5-inch HDD backplane (A3C40157852)" on
page 130 or "Right side 4 x 2.5-inch HDD backplane (A3C40157828)" on
page 132.
Left side 4 x 2.5-inch HDD backplane (A3C40157852)

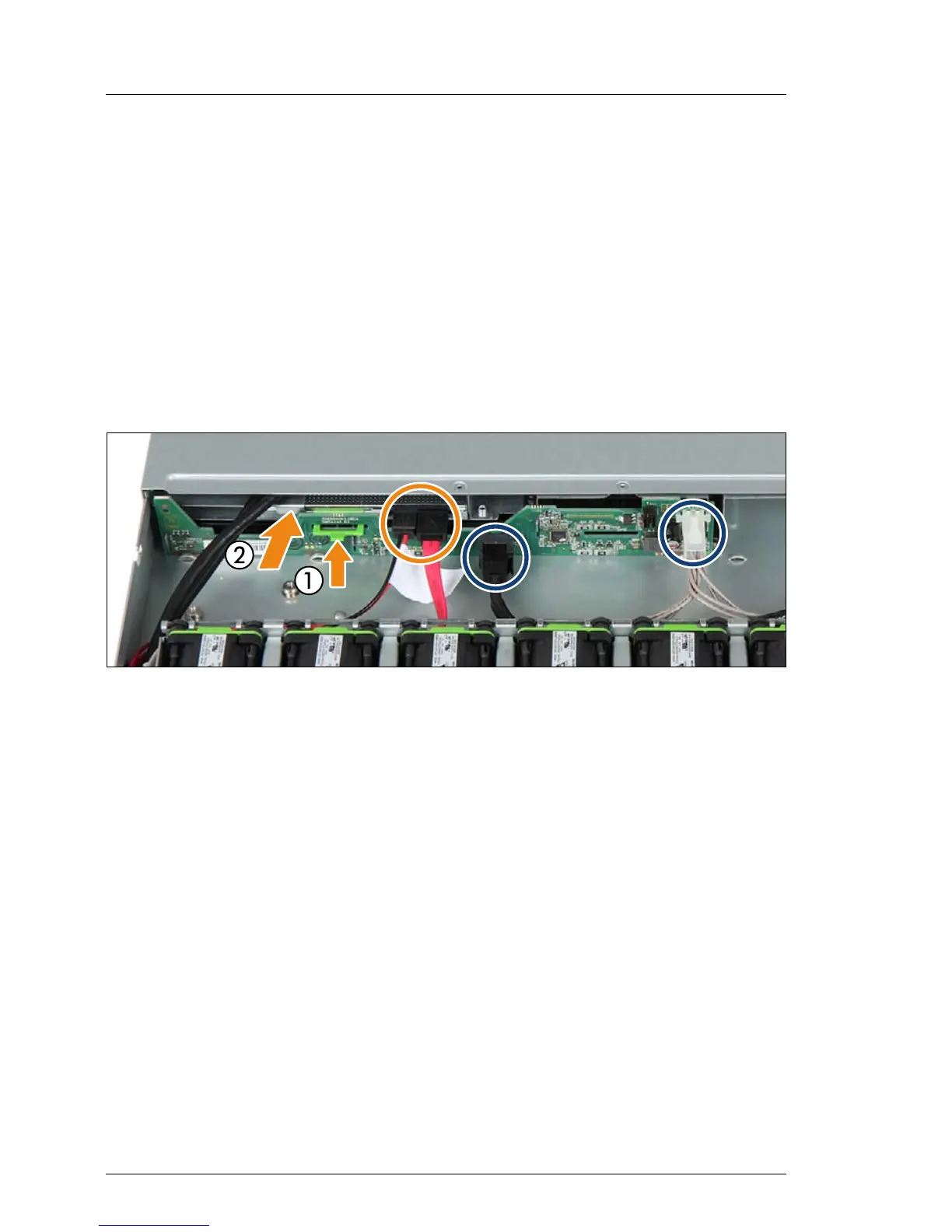

Figure 51: Releasing the ODD latch and disconnecting the cables
Ê If applicable, disconnect both cables from the ODD (see orange circle).
Ê If applicable, pull the ODD latch upward (1) until it disengages and push the
ODD somewhat in direction of the front side (2).
Ê Disconnect all cables from the HDD backplane (see blue circles).
