7.3.2.3 Installing a 3.5-inch HDD module

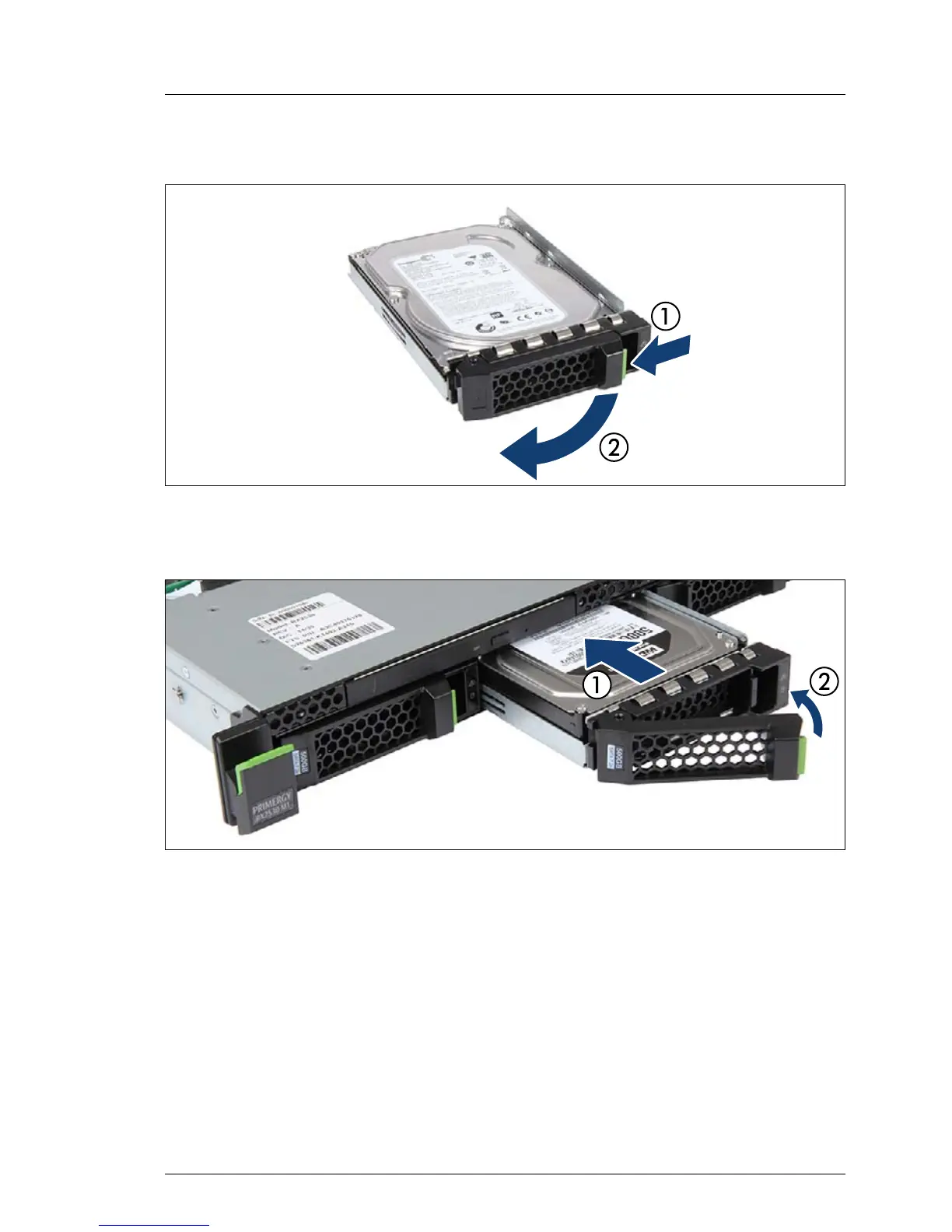

Figure 74: Opening the 3.5-inch HDD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
Figure 75: Installing the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Close the locking lever to lock the hard disk drive in place (2).
7.3.2.4 Concluding steps
Ê "Performing a RAID array rebuild" on page 96
