Fujitsu PRIMERGY RX2530 M1

RX2530 M1 Upgrade and Maintenance Manual 63
Basic hardware procedures

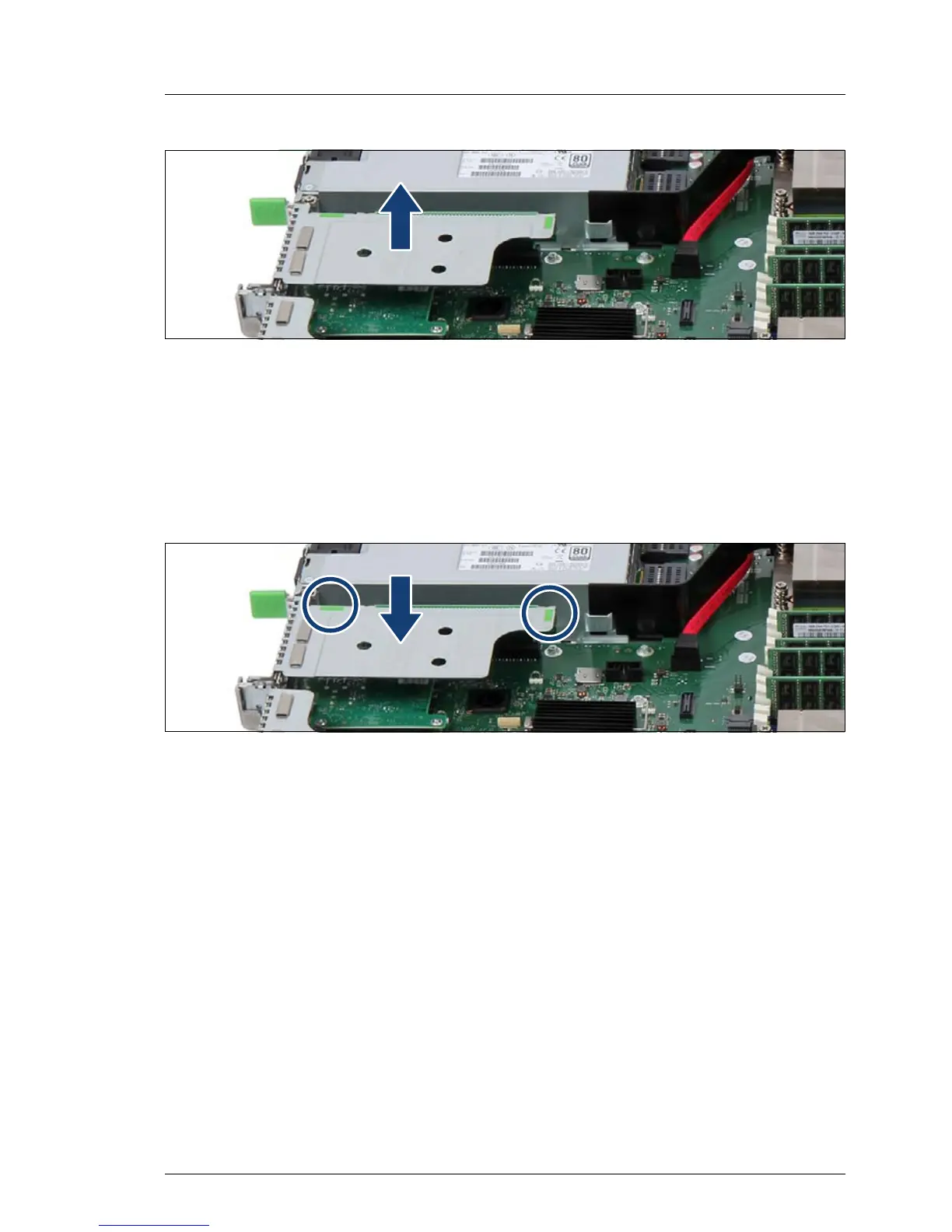

Figure 15: Removing a riser module (example riser module 3)
Ê If necessary, disconnect cables from the other components.
Ê Carefully pull out the corresponding riser module upward.
4.8.2 Installing a riser module
Figure 16: Installing a riser module (example riser module 3)
Ê Insert the riser card into the system board slot and press down the green
touch points (see circles).
Ê If necessary, connect the cables to the other components.
