13.3.1.2 Removing the dummy cover

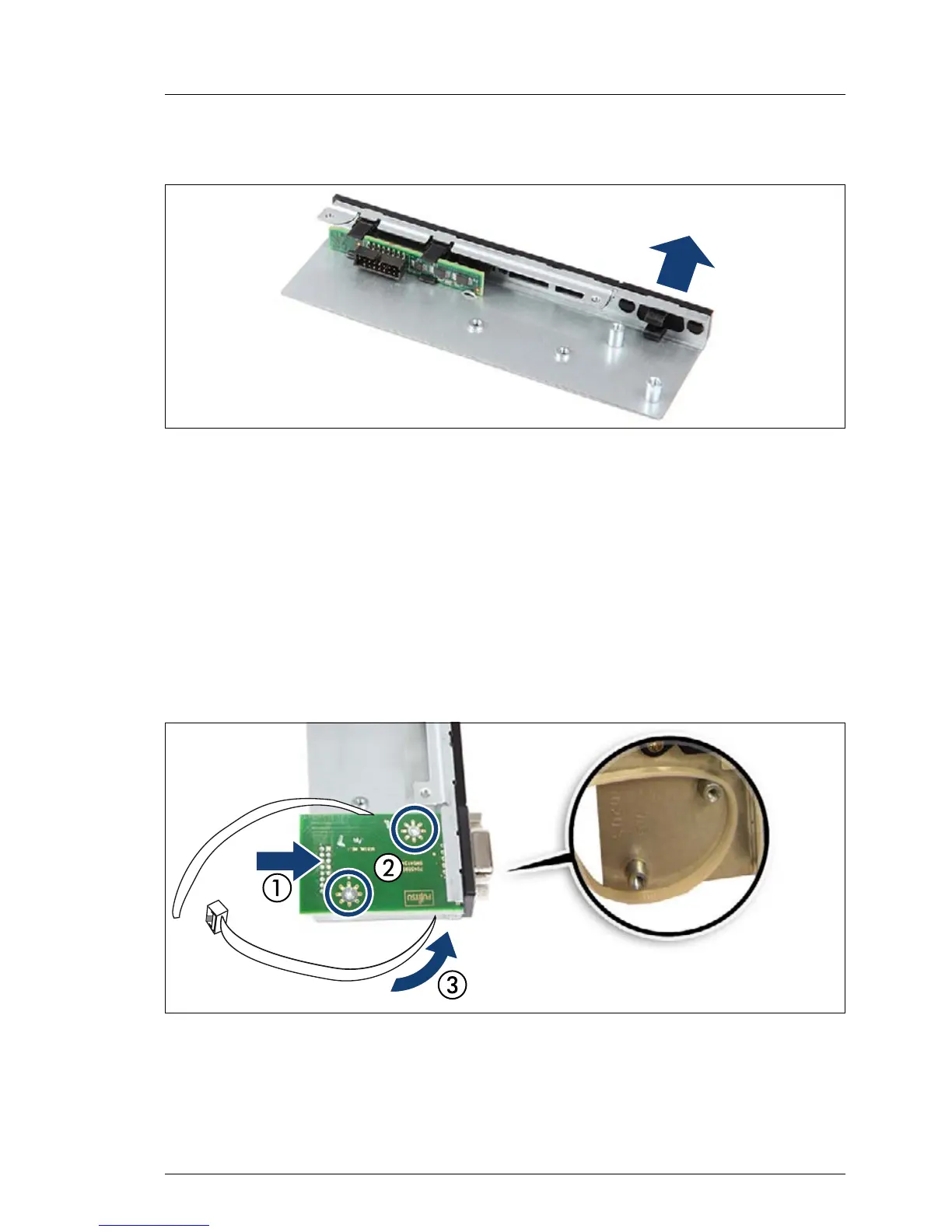

Figure 202: Removing the dummy cover
Ê Remove the dummy cover.
V CAUTION!
Keep the dummy cover for future use. If you remove the front VGA board
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
13.3.1.3 Installing the front VGA board
Figure 203: Installing the front VGA board
Ê Push the front VGA connector in the corresponding recess (1) and fasten the
front VGA board with two screws (2).
Ê Route the cable tie under the front VGA board (3).
