Fujitsu PRIMERGY RX2530 M1

RX2530 M1 Upgrade and Maintenance Manual 287
Front panel

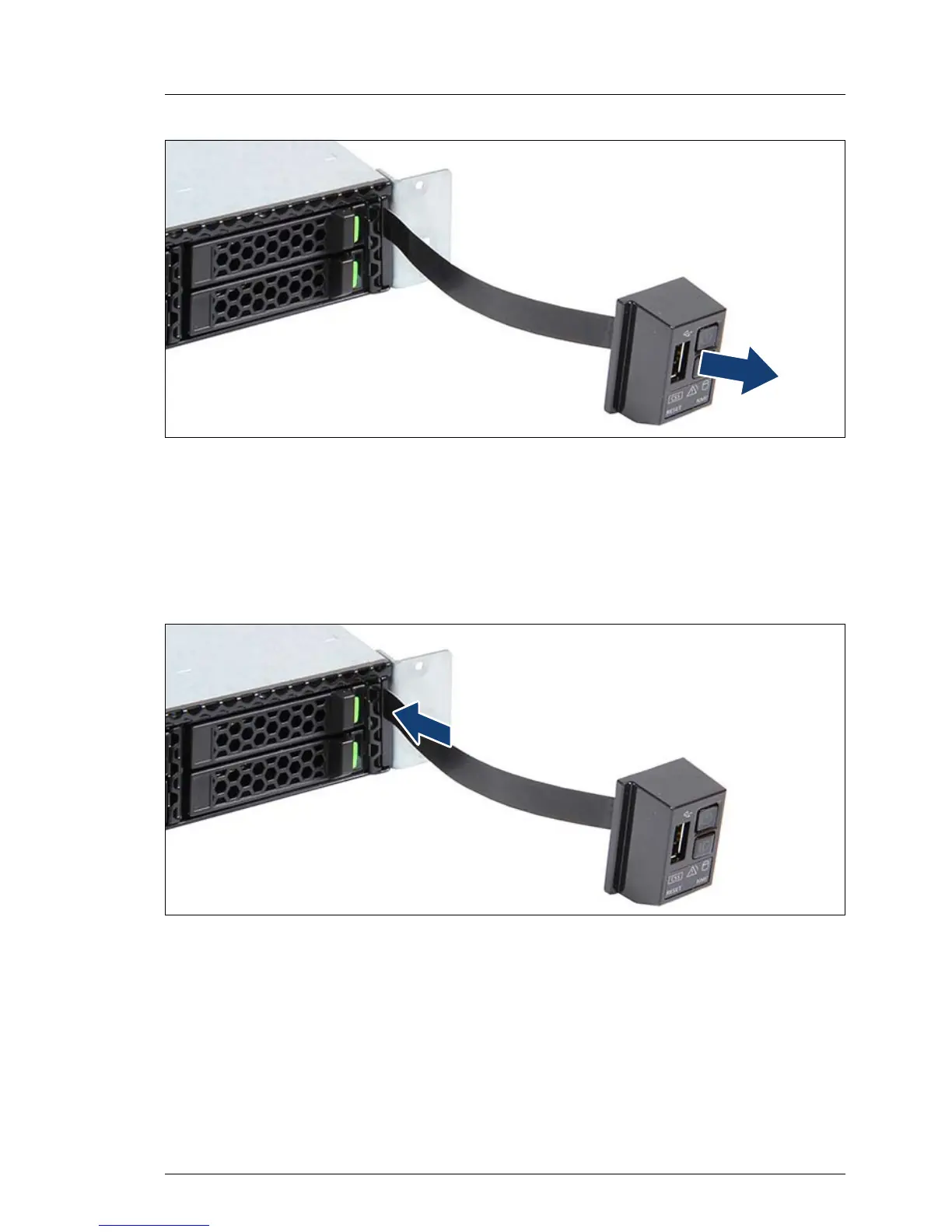

Figure 207: Removing the front panel on QRL (B)
Ê Remove the front panel.
Ê Pull the front panel cable out of the opening.
13.4.1.3 Installing the front panel on QRL
Figure 208: Installing the front panel (A)
Ê Thread the front panel cable through the opening.
