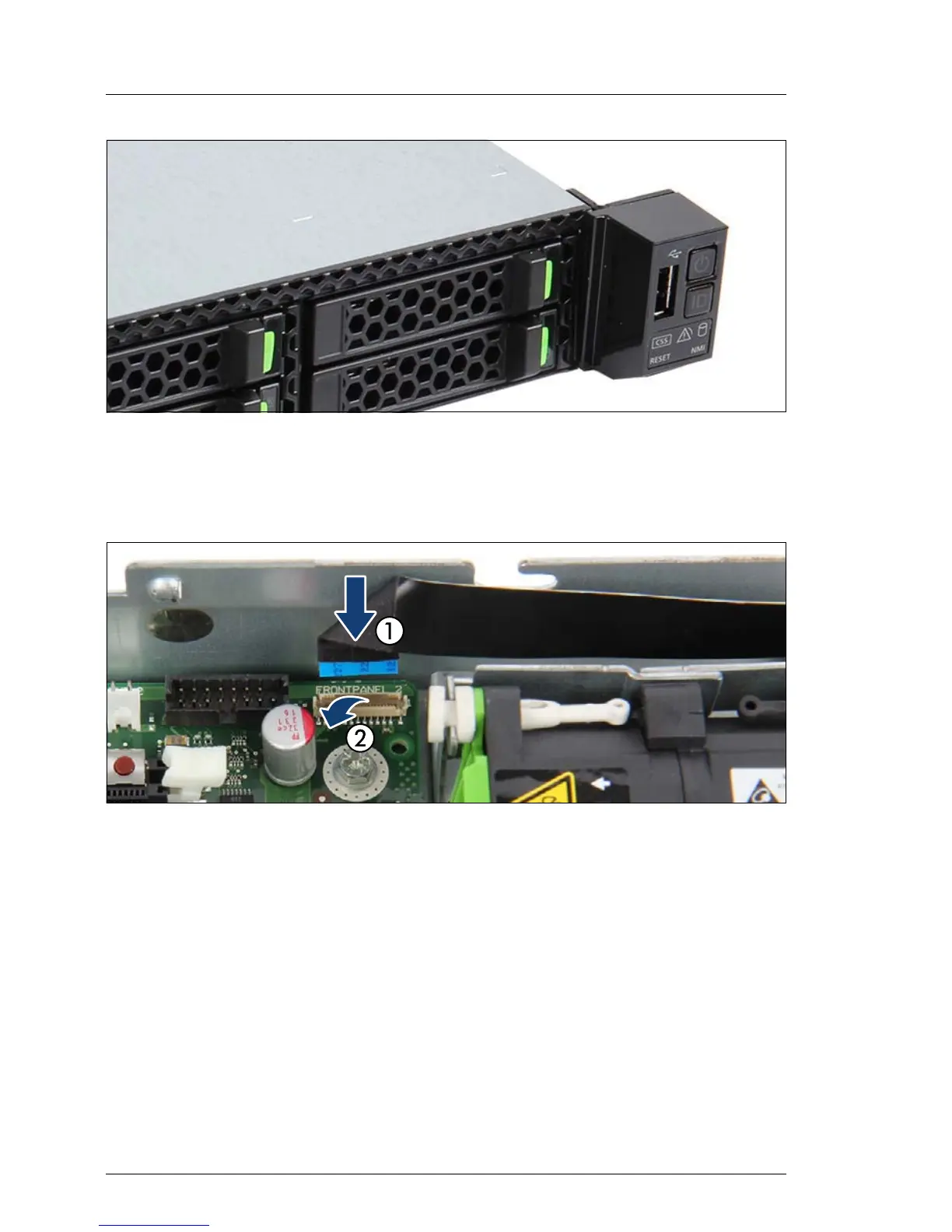

Figure 209: Installing the front panel (B)
Ê Position the front panel on the ear.
Ê Fasten the front panel with two screws (see figure 206).
Figure 210: Connecting the front panel cable
Ê Bend the cable 90 degrees by hand for easier routing.
Ê Insert the front panel cable (1). Please make sure that the front panel cable
is assembled as shown (blue marking).
Ê Press down the locking bar (2).
