9.5.4.3 Installing the new riser card

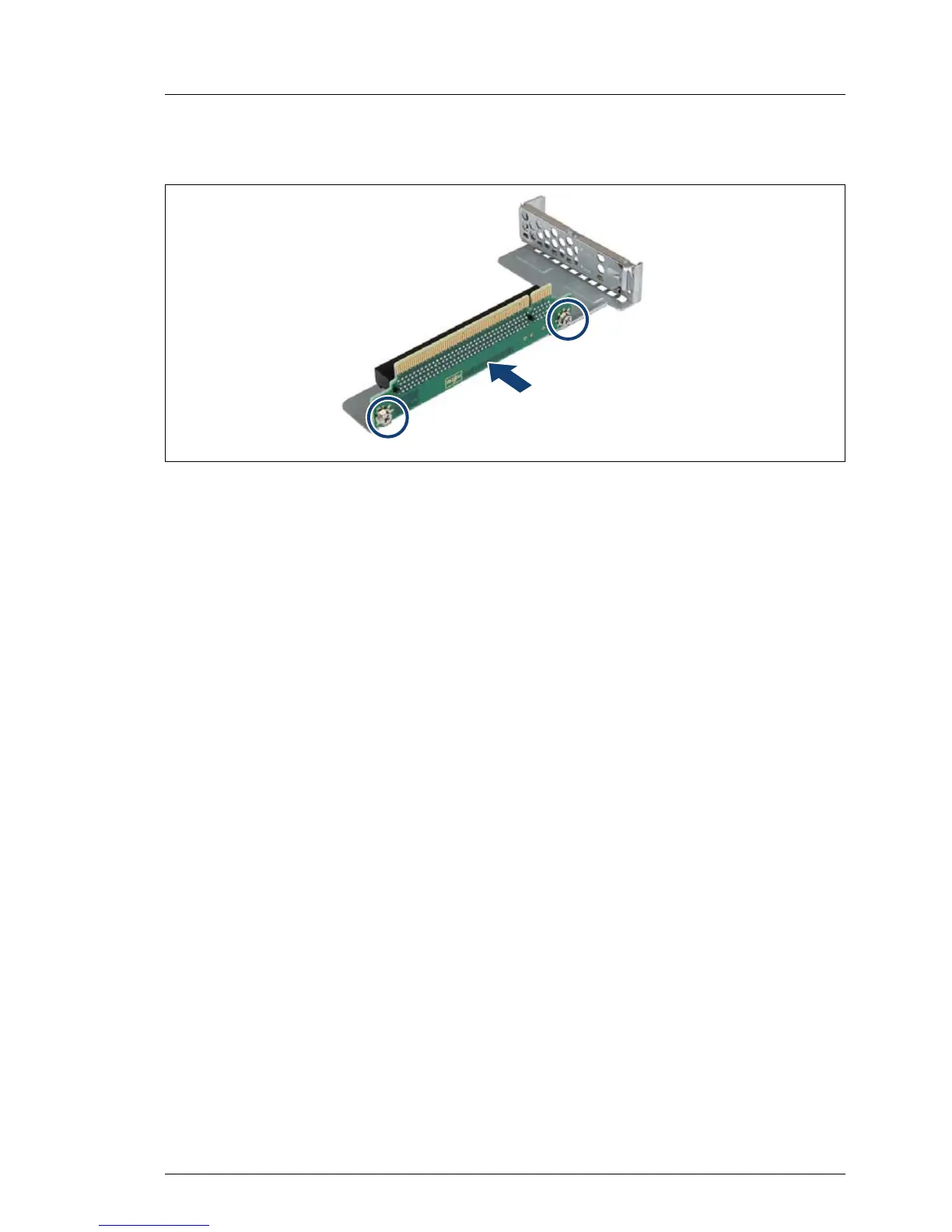

Figure 129: Installing the riser card - example riser module 2
Ê Insert the riser card.
Ê Fasten the riser card with two screws (see circles).
Ê Install the expansion card as described in section "Installing the expansion
card" on page 191.
9.5.4.4 Concluding steps
Ê Install the corresponding riser module as described in section "Handling
riser modules" on page 62.
Ê "Reassembling" on page 54
Ê "Connecting the server to the mains" on page 60
Ê "Switching on the server" on page 61
