9.6.3 Removing an FBU in a 2.5-inch HDD chassis
V CAUTION!
●
Dispose of used battery properly. Keep away from children.
●
Do not throw flash backup units into the trash can. Batteries must be
disposed of in accordance with local regulations concerning special
waste.
9.6.3.1 Preliminary steps
Ê "Shutting down the server" on page 48
Ê "Disconnecting the server from the mains" on page 49
Ê "Getting access to the component" on page 49
9.6.3.2 Removing the FBU with the holder

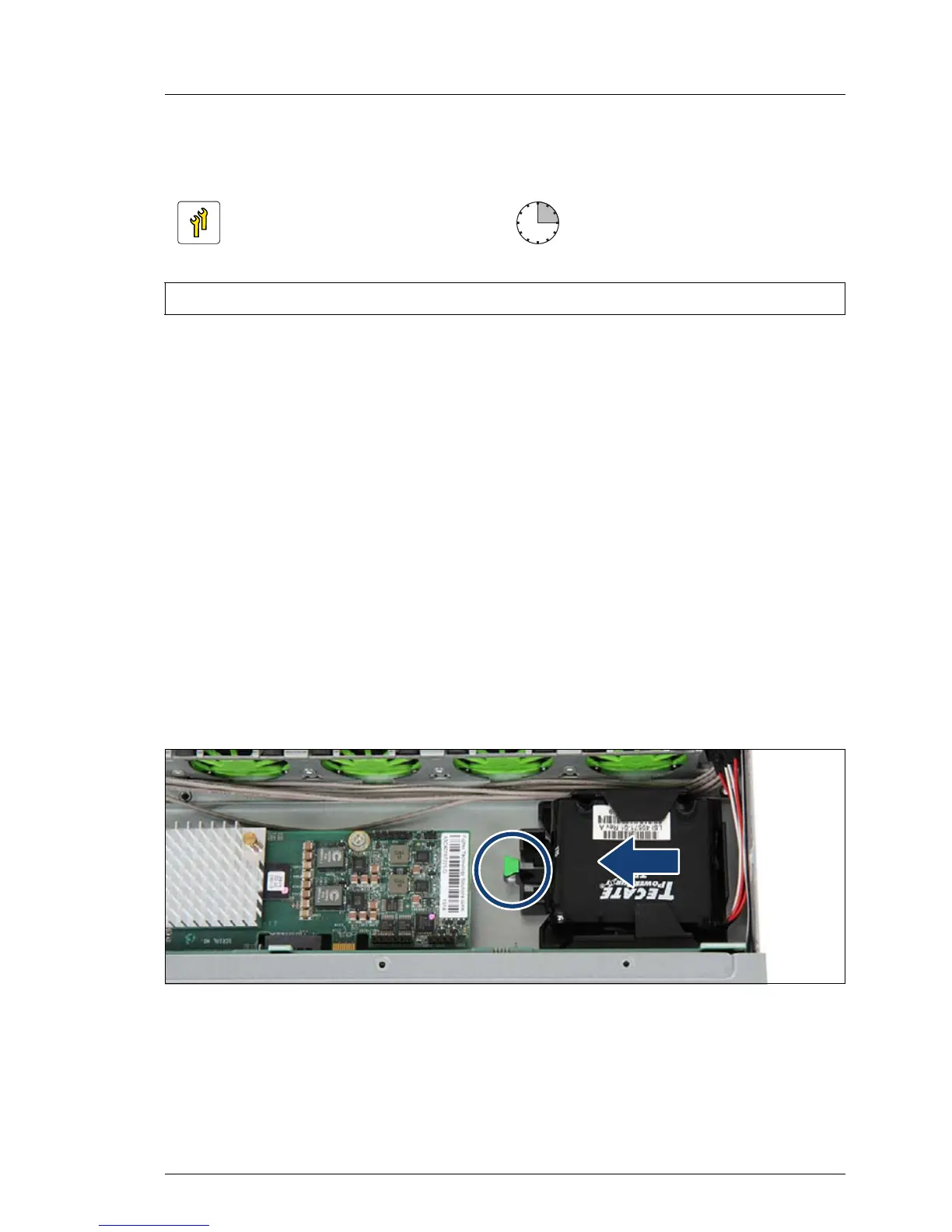

Figure 153: Removing the FBU with the holder
Ê Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
I After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the holder.
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: tool-less
To Next Page
