RX2530 M
1
Upgrade and Maintenance Manual
159
Fan
s
8.2.3
Inst
a
lling the ne
w fan modul
e

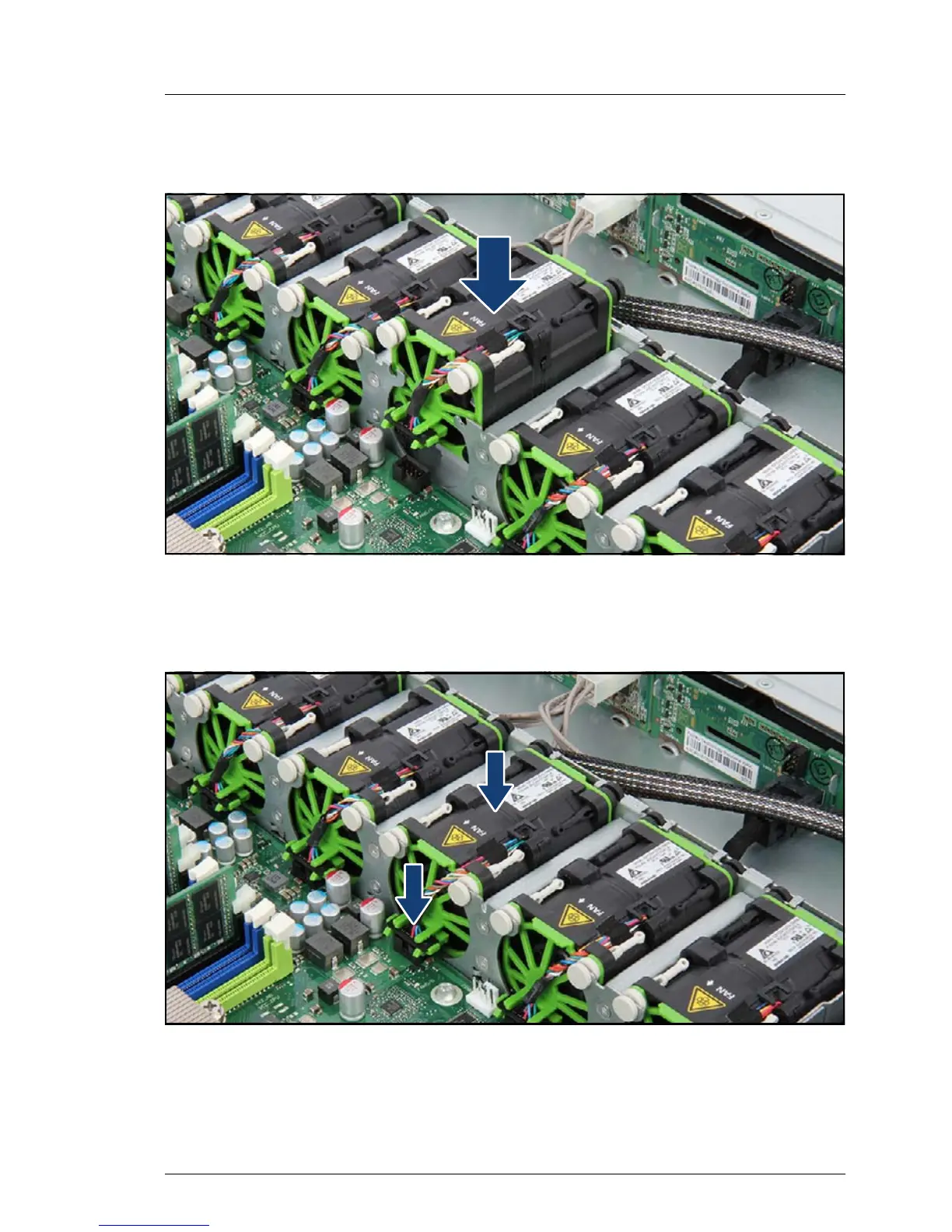

Figure 85: Installing the fan m
odule (A)
Ê
Insert the fan module in the fan bay
. Notice the right position of the rubber
pins and the fan connector
.
Figure 86: Installing the fan m
odule (B)
Ê
Pres
s down the fan and the fan connector
.
158
160
