6.3.1 Preliminary steps
Ê Only when replacing a power supply unit in a non-redundant configuration:
"Shutting down the server" on page 48
6.3.2 Removing a power supply unit
Ê Remove the power cord from the dedicated power supply unit as described
in section "Disconnecting the server from the mains" on page 49.

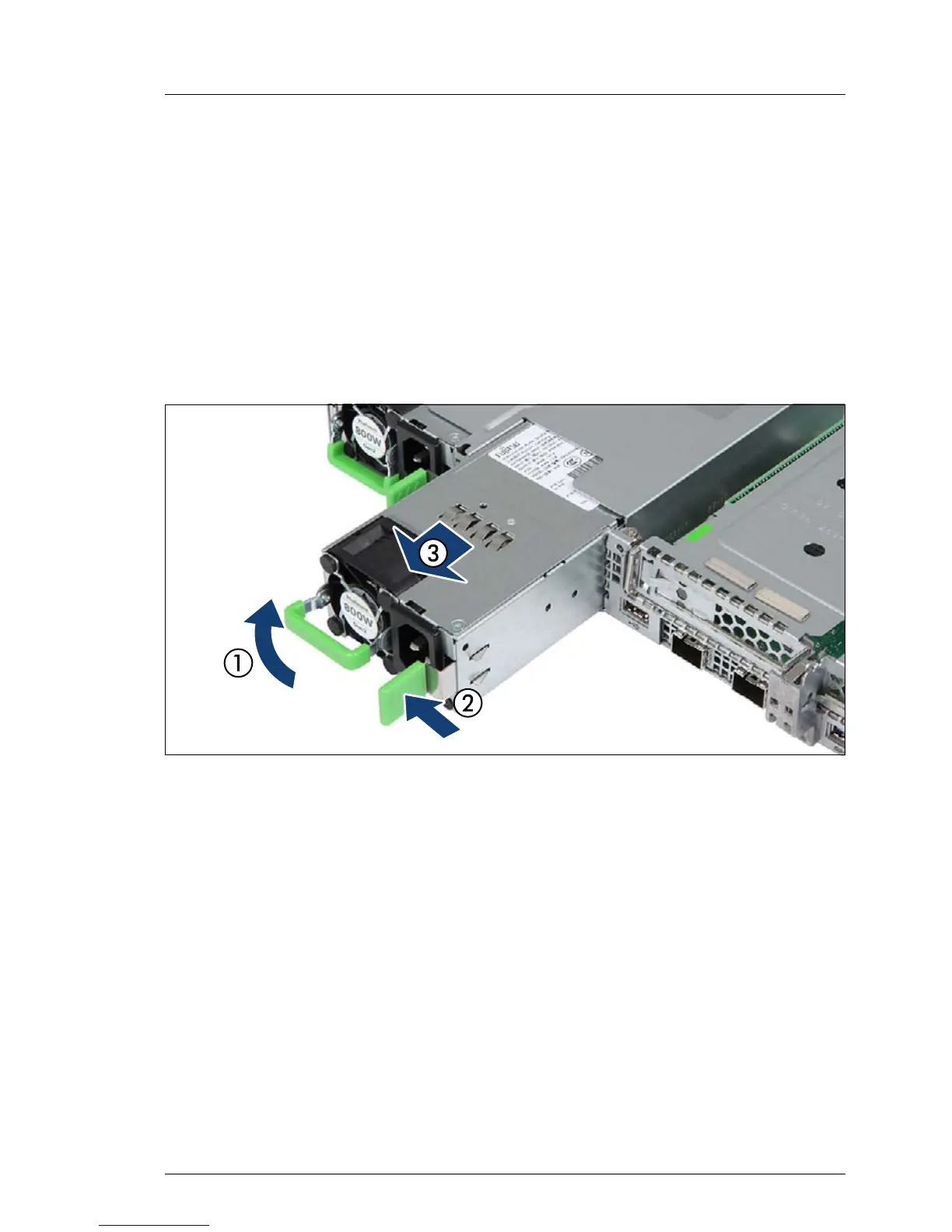

Figure 35: Unlocking and removing the power supply unit
Ê Push the handle of the power supply unit halfway upward in the direction of
the arrow (1).
Ê Push the lock in direction of the arrow (2).
Ê Grip the handle and pull out the power supply unit in the direction of the
arrow (3).
V CAUTION!
Never leave the bay for the power supply unit empty for more than two
minutes during operation. Otherwise, excessive temperatures could
damage system components.
