Fujitsu PRIMERGY RX2530 M1

RX2530 M1 Upgrade and Maintenance Manual 139
Hard disk drives / solid state drives
7.2.9.3 Removing the defective 10 x 2.5-inch HDD backplane

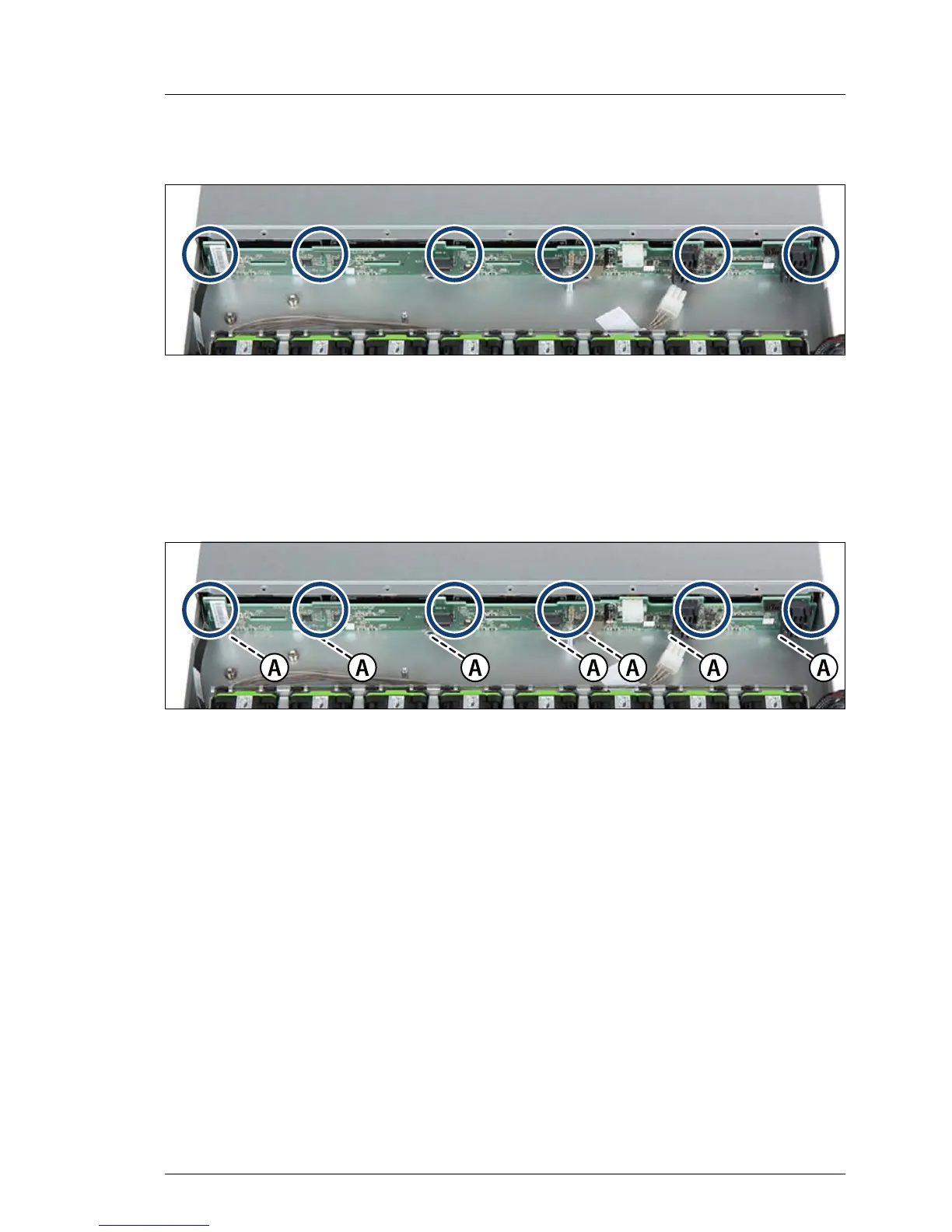

Figure 64: Removing the 10 x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.
7.2.9.4 Installing the new 10 x 2.5-inch HDD backplane
Figure 65: Installing the 10 x 2.5-inch HDD backplane
Ê Position the HDD backplane on the six hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the lower cant of the
HDD backplane fits in the guides (A).
