7.2.6.2 Removing a 2.5-inch HDD/SSD module
Ê Pinch the green locking clips and open the locking lever (see figure 48).
Ê Pull the HDD/SSD module out a few centimeters.
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
I This is not necessary when removing a solid state drive.
I This period is necessary for the RAID controller to recognize that an
HDD module has been removed and for the hard disk drive to come
to a stop.
Ê Pull the HDD/SSD module completely out of its bay.
7.2.6.3 Installing a 2.5-inch HDD/SSD dummy module
V CAUTION!
If the removed HDD/SSD module is not replaced immediately, always
replace a dummy module into the unused HDD/SSD bay to comply with
applicable EMC regulations and satisfy cooling requirements.

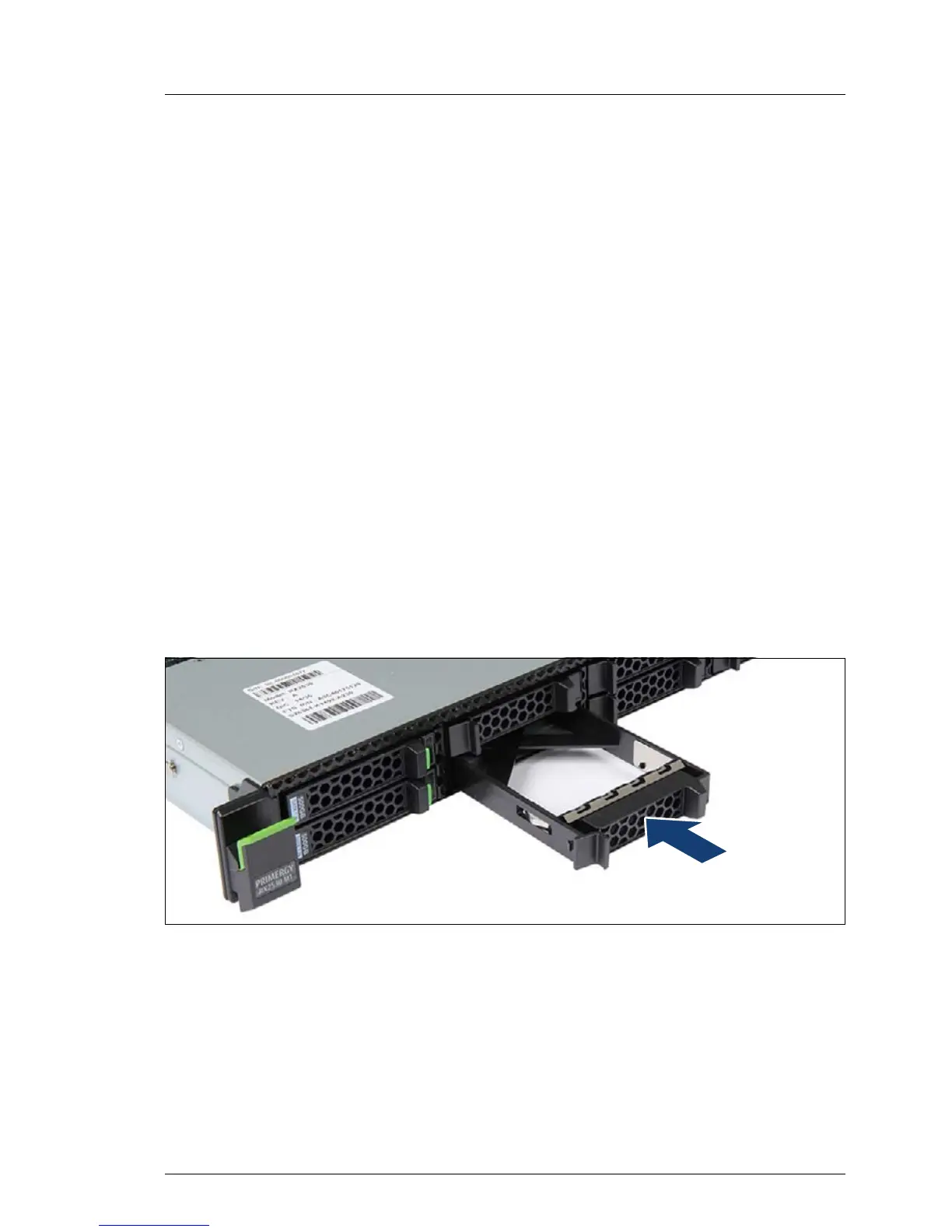

Figure 50: Installing a 2.5-inch dummy module
Ê Push the dummy module into the empty bay until it engages.
7.2.6.4 Concluding steps
No steps needed.
