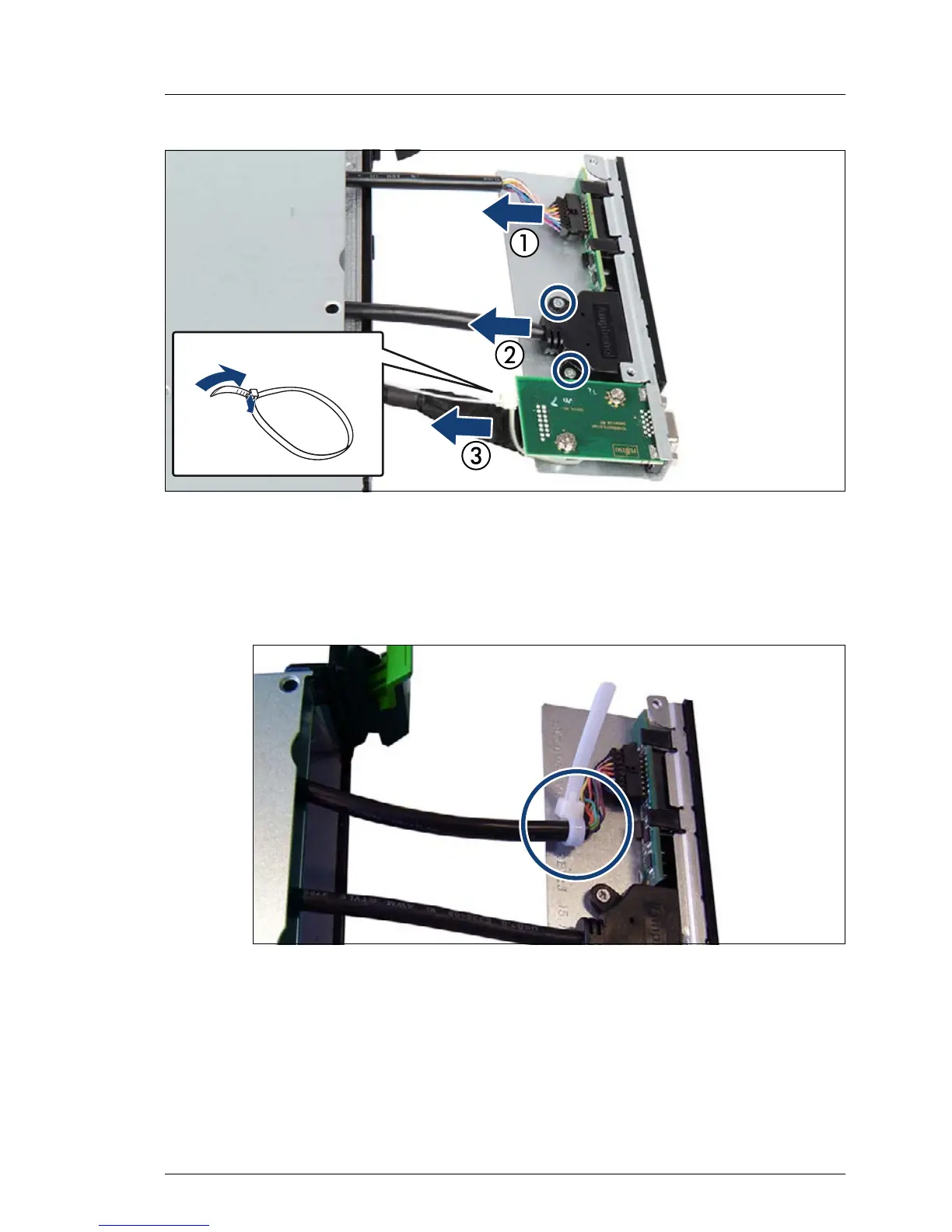

Figure 196: Removing cables from the front panel module
Ê Disconnect the front panel cable (1).
I If the front panel cable is secured with a cable tie, open the cable tie.
Please do not cut the cable tie.
Figure 197: Cable tie of front panel cable
Ê Remove the two corresponding screws and disconnect the front USB cable
(2).
Ê If applicable, open the cable tie and disconnect the front VGA cable (3).
I Please do not cut the cable tie.
