Fujitsu PRIMERGY RX2530 M1 Upgrade And Maintenance Manual

206 Upgrade and Maintenance Manual RX2530 M1
Expansion cards and backup units

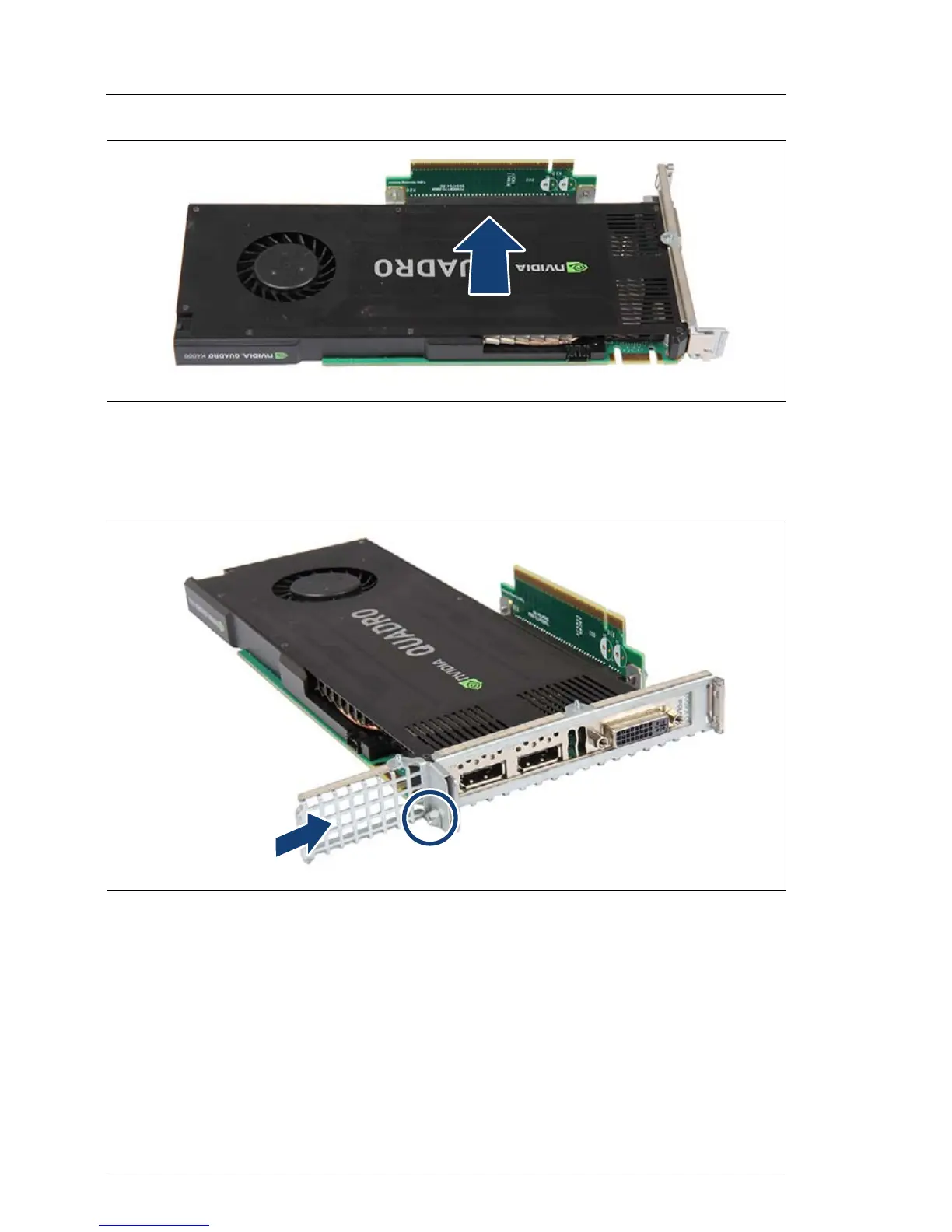

Figure 138: Installing the expansion card - example full height riser module
Ê Install the expansion card as described in section "Installing the expansion
card" on page 191.
Figure 139: Installing the extension bracket
Ê Fasten the extension bracket with one screw to the full height riser module
(see circle).
