Fujitsu PRIMERGY RX2530 M1 Upgrade And Maintenance Manual

RX2530 M1 Upgrade and Maintenance Manual 207
Expansion cards and backup units

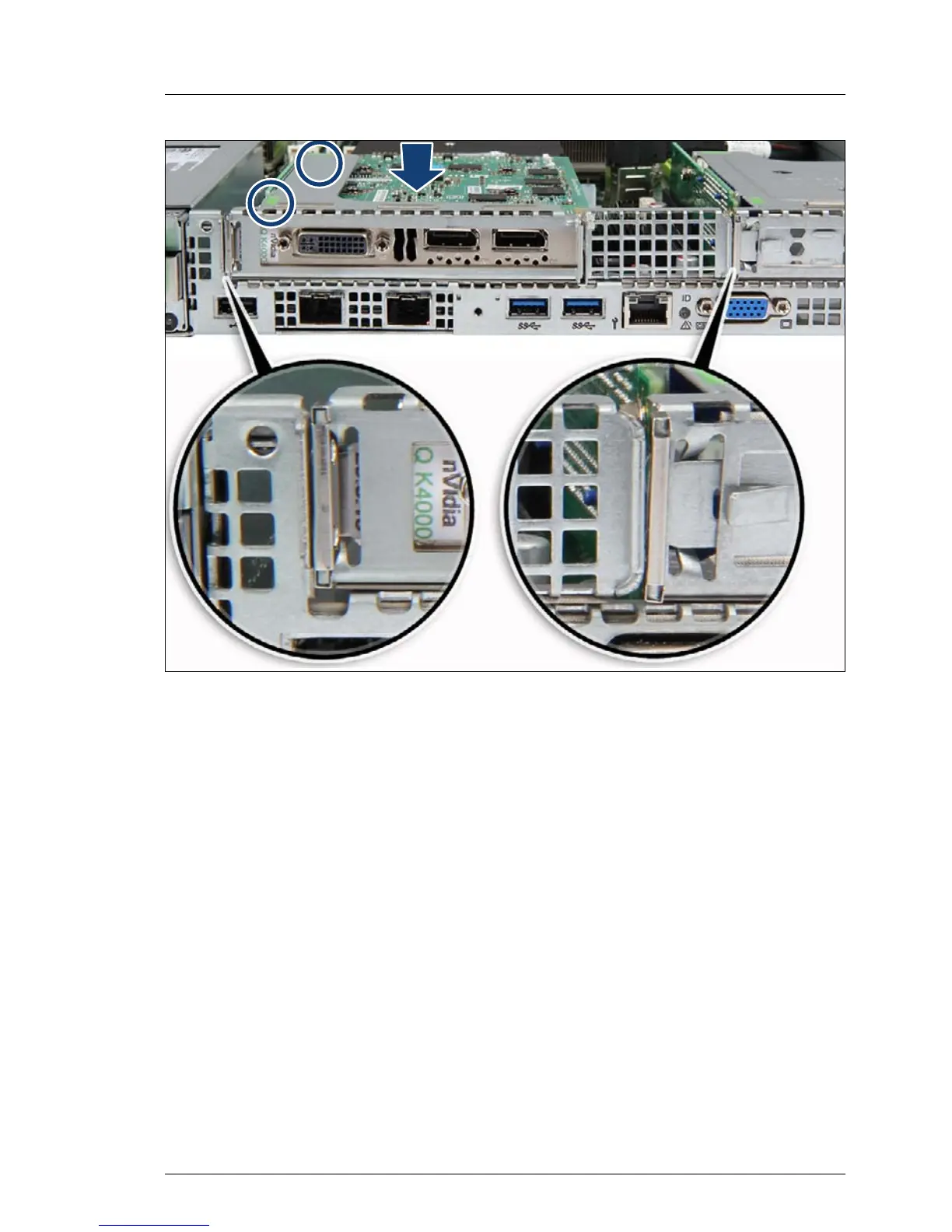

Figure 140: Installing the full height riser module
Ê Insert the riser card into the system board slot and press down the green
touch points (see circles).
V CAUTION!
Make sure that the EMC springs make contact correctly (see close-ups).
