Fujitsu PRIMERGY RX2530 M1

132 Upgrade and Maintenance Manual RX2530 M1
Hard disk drives / solid state drives

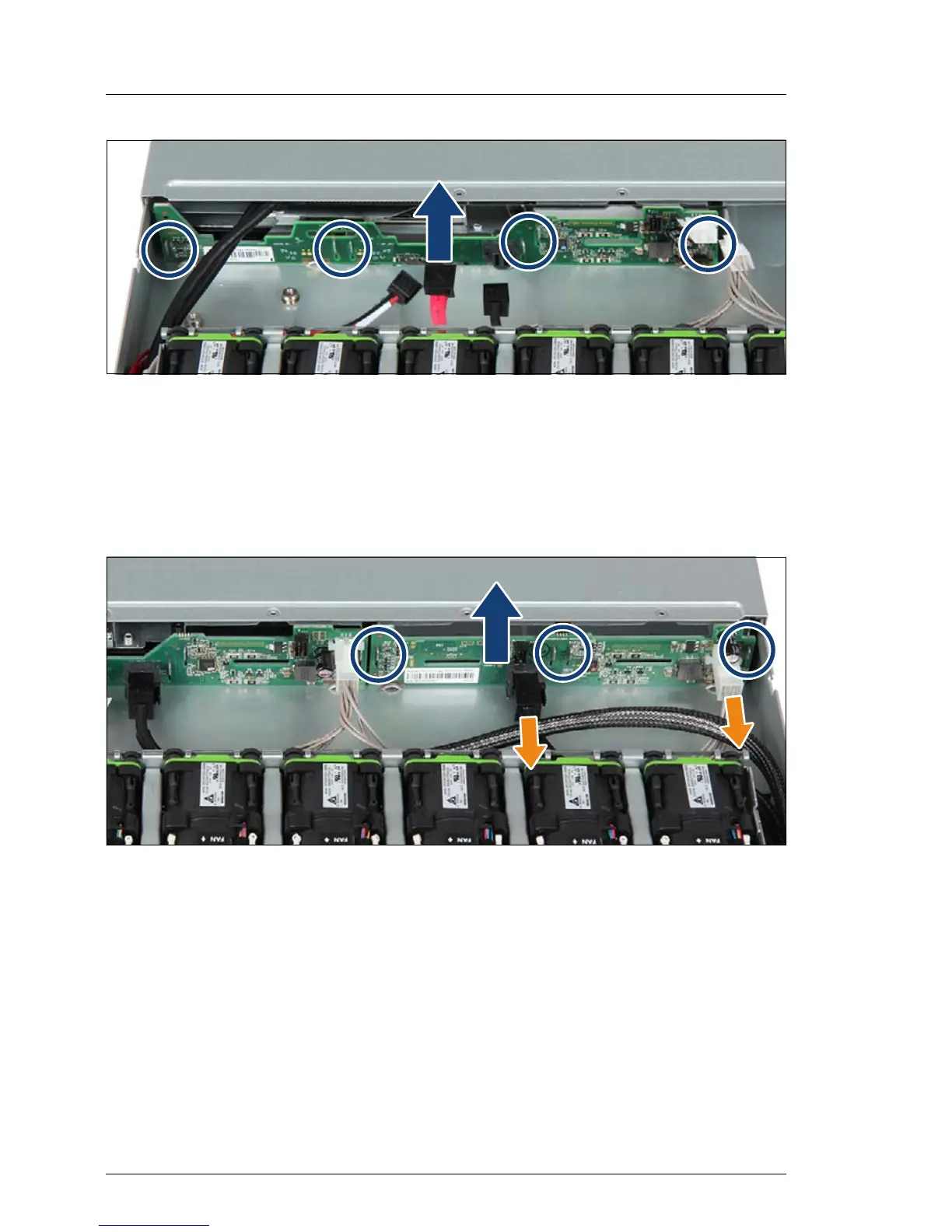

Figure 54: Removing the 4 x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.
Right side 4 x 2.5-inch HDD backplane (A3C40157828)
Figure 55: Removing the 4 x 2.5-inch HDD backplane
Ê Disconnect all cables from the HDD backplane (see orange arrows).
I If applicable, remove the OOB cable from the HDD backplane, too
(see figure 53).
Ê Pull the HDD backplane upward until the four hooks disengage (see circles).
Ê Take out the HDD backplane.
