RX2530 M
1
Upgrade and Maintenance Manual
201
Expansion cards and backu
p units
Example RAID controller D3216

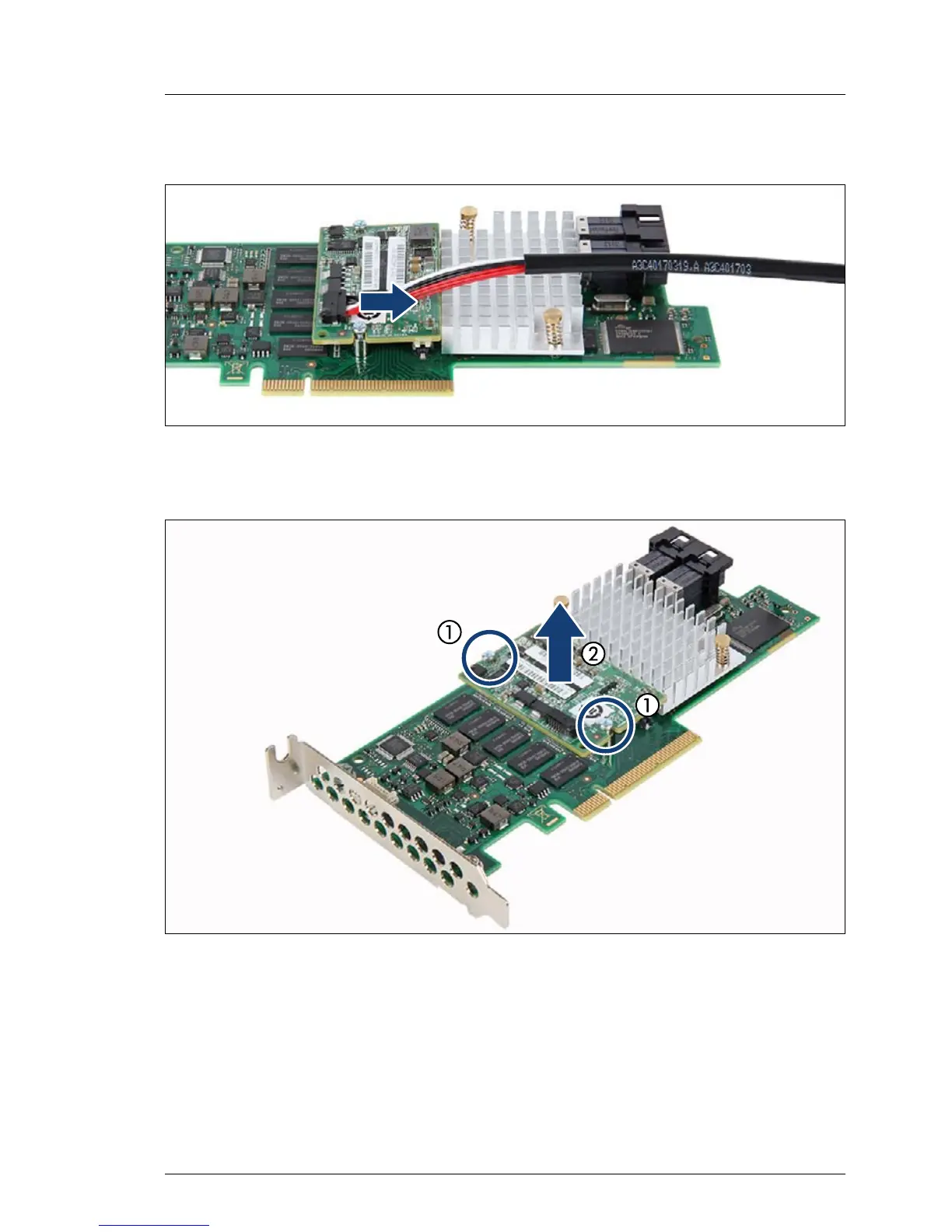

Figure 130:
Disconnecting the
FBU adapter cable
from the TFM
Ê
Di
sconnect the FBU adapter cable from the TFM.
Figure 131: Removing the TFM
Ê
Remove the two scre
ws (1).
Ê
Remove the TFM (2)
.
I
Note for replacing the TFM:
The two spacer bolt
s can remain on the RAID controller
.
200
202
