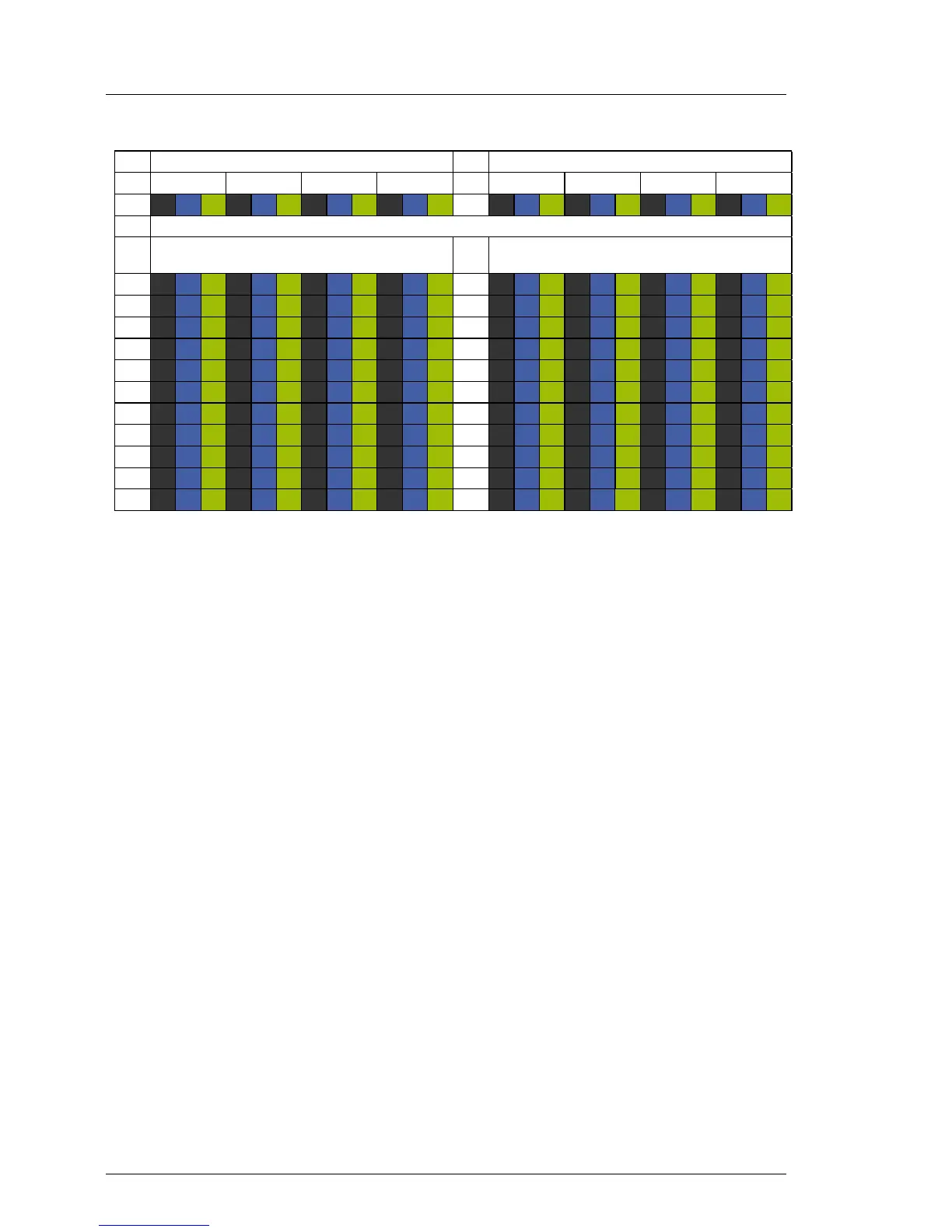

230 Upgrade and Maintenance Manual
RX2530 M1
Main memory
I For detailed population rules, refer to section "Notes on Rank Sparing
mode" on page 232.
2 UPCUPC 1 UPC UPC
Ch.
A B D C
Ch.
E F H G
DIMM
1A 2A 3A 1B 2B 3B 1D 2D 3D 1C 2C 3C
DIMM
1E 2E 3E 1F 2F 3F 1H 2H 3H 1G 2G 3G
#
Dual CPU configuration
(if modules are of different capacities)
#
Dual CPU configuration
(if modules are of different capacities)
2
1 1
2
2 2
3
1 1 1
3
2 2 2
4
1 1 1 1
4
2 2 2 2
5
1 1 1 1 1
5
2 2 2 2 2
6
1 1 1 1 1 1
6
2 2 2 2 2 2
7
1 1 1 1 1 1 1
7
2 2 2 2 2 2 2
8
1 1 1 1 1 1 1 1
8
2 2 2 2 2 2 2 2
9
1 1 1 1 1 1 1 1 1
9
2 2 2 2 2 2 2 2 2
10
1 1 1 1 1 1 1 1 1 1
10
2 2 2 2 2 2 2 2 2 2
11
1 1 1 1 1 1 1 1 1 1 1
11
2 2 2 2 2 2 2 2 2 2 2
12
1 1 1 1 1 1 1 1 1 1 1 1
12
2 2 2 2 2 2 2 2 2 2 2 2
