Optical disk drive
2.5-inch HDD configuration

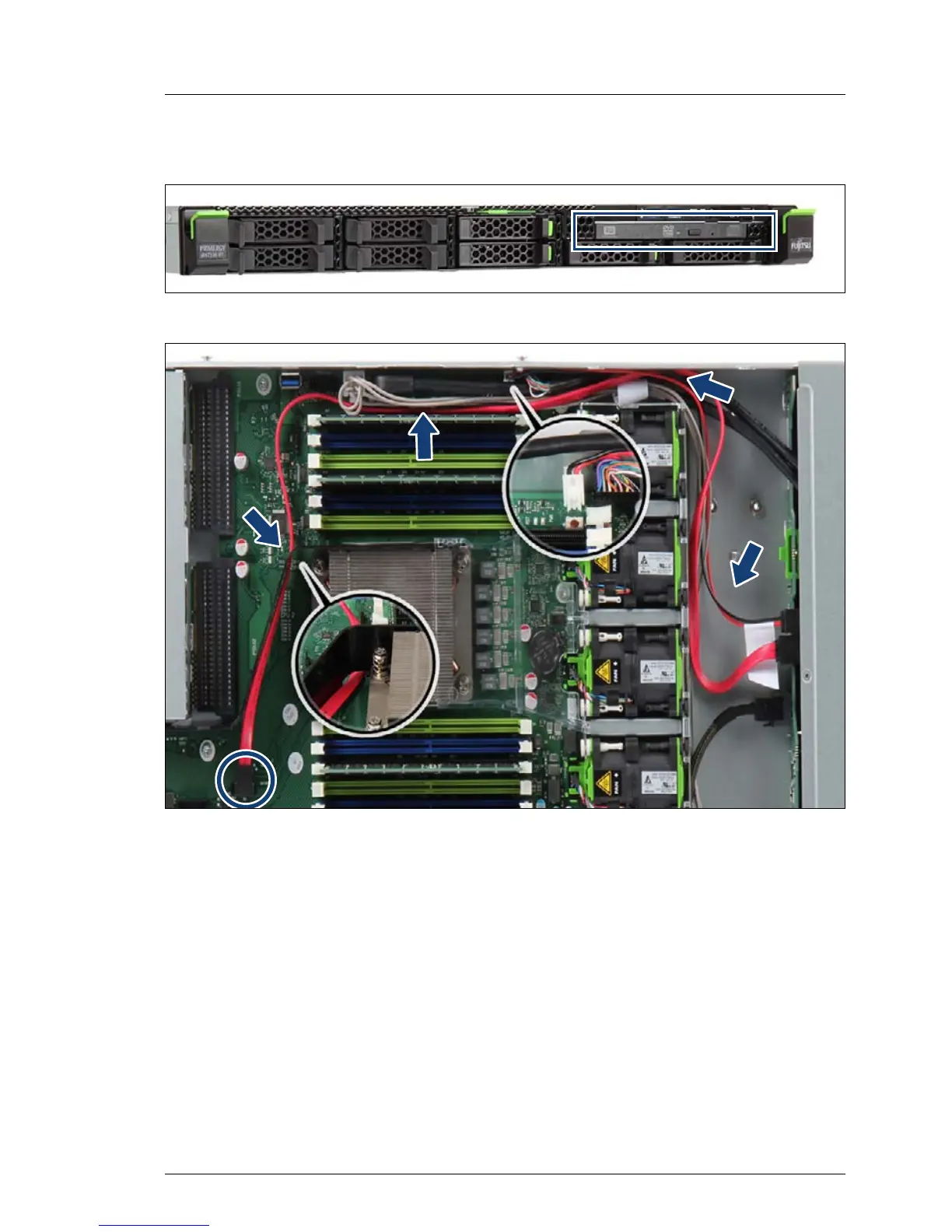

Figure 182: Position of the ODD bay - example 2.5-inch HDD configuration
Figure 183: Routing ODD cables - example 2.5-inch HDD configuration
I Note for installing air guide on CPU 2:
the SATA cable must be routed through the recess of the air guide (see
close-up).
