RX2530 M1
Upgrade and Maintenance Manual 341
Cables

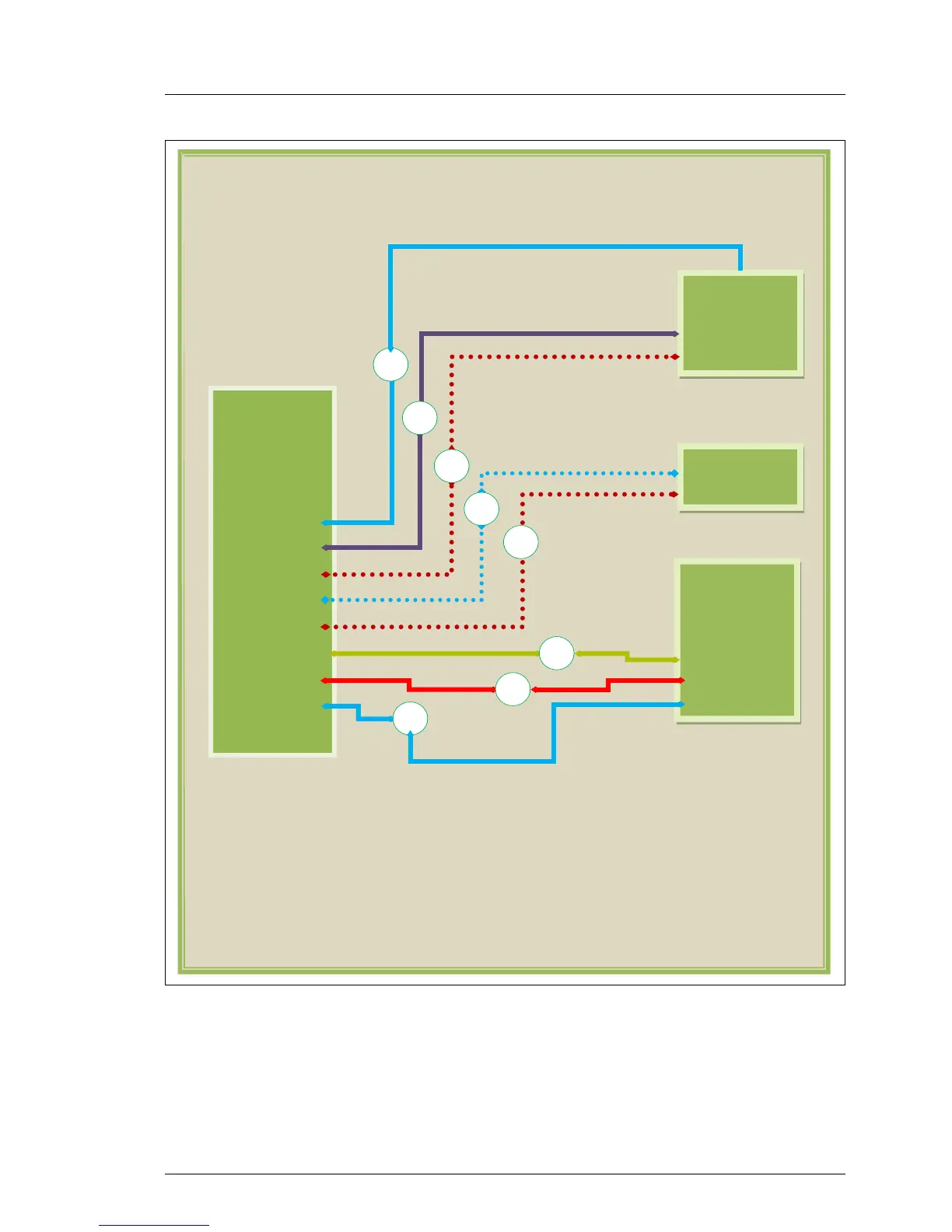

Figure 245: Configuration 3: 4 x 2.5-inch HDDs, SATA onboard
D3279
HDD MLC1
Frontpanel
Front USB
Front VGA
ODD Data
ODD PWR
HDD PWR
SMBus
DVD (opt.)
SAS BP
A3C40157852
L-shape4 x 2.5“
Frontpanel
+ 2x USB
Front USB
Front VGA (optional)
C1
Data
PWR
X5
C2
PWR
(
X10
)
SMBus
C7
C9
C3
C6
C4
C12
