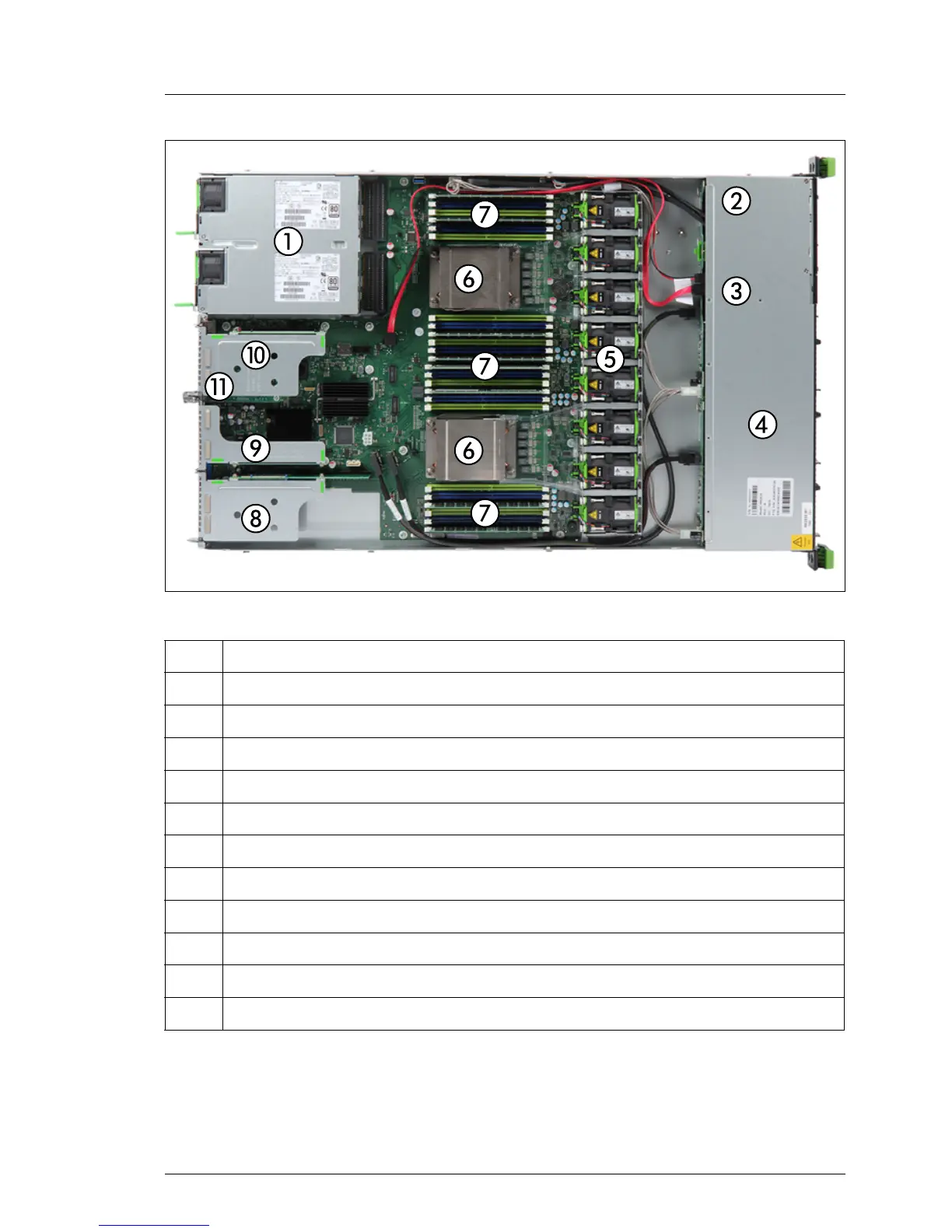

Figure 263: Interior (example: 2.5-inch HDDs)
*
)
In the global market the DynamicLoM module is an option.
Pos. Component
1 Redundant power supply: up to 2 power supply units / dummy cover
2 Front panel module / front VGA (option) / dummy cover
3 ODD (option) / dummy cover
4 Up to 8x 2.5-inch hard disk drives / dummy modules
5 Fan modules
6Processor
7 Main memory
8 Riser module 1
9 Riser module 2
10 Riser module 3
11
DynamicLoM module *
)
