RX2530 M
1
Upgrade and Maintenance Manual
55
Basic hardware procedures

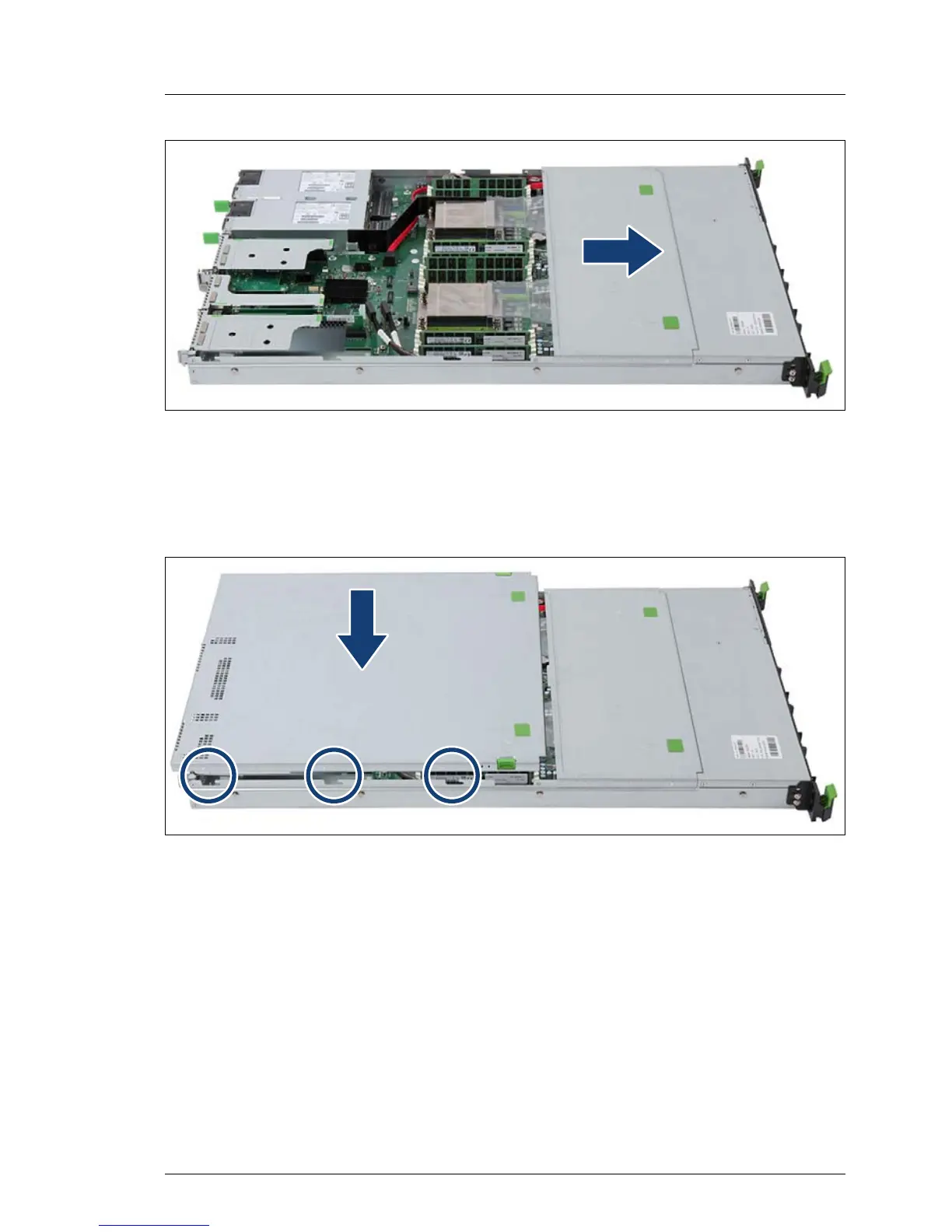

Figure 8: Att
aching the fan cover (B)
Ê
Push the fan cover as far as it will go in the direction of the arrow
.
Inst
alling the housin
g cover
Figure 9: Att
aching the housing cover (A)
Ê
Place the housing cover on the server
. Notice the recesses (s
ee circles).
V
CAUT
ION!
T
ake care that all cables are inside the chassis.
54
56
