GE HEALTHCARE
DIRECTION FC091194, REVISION 11 VIVID 7 SERVICE MANUAL
3 - 74 Section 3-9 - Connectivity Setup - Software v7.x (BT’08), v6.x, v5.x and v4.x
3-9-15-5 eVue Configuration
1.)
Press CONFIG (F2) and log on as administrator.
2.) Select the Connectivity category and Dataflow subgroup. The Dataflow sheet is displayed.
3.) Select the dataflow Local Archive - Int. HD/eVue in the Name pull-down menu.
4.) Select the eVue device in the Selected devices pane and press Properties. The eVue properties
window is displayed.
5.) Select a removable media or a network volume remote path as the destination in the Destination
pull-down menu.
NOTE: Remote paths of network volumes must be entered once in the Remote path field before they
can be selected from the Destination Pull-down menu.
6.) Check the options as required.
7.) Select OK and press CONFIG (F2).

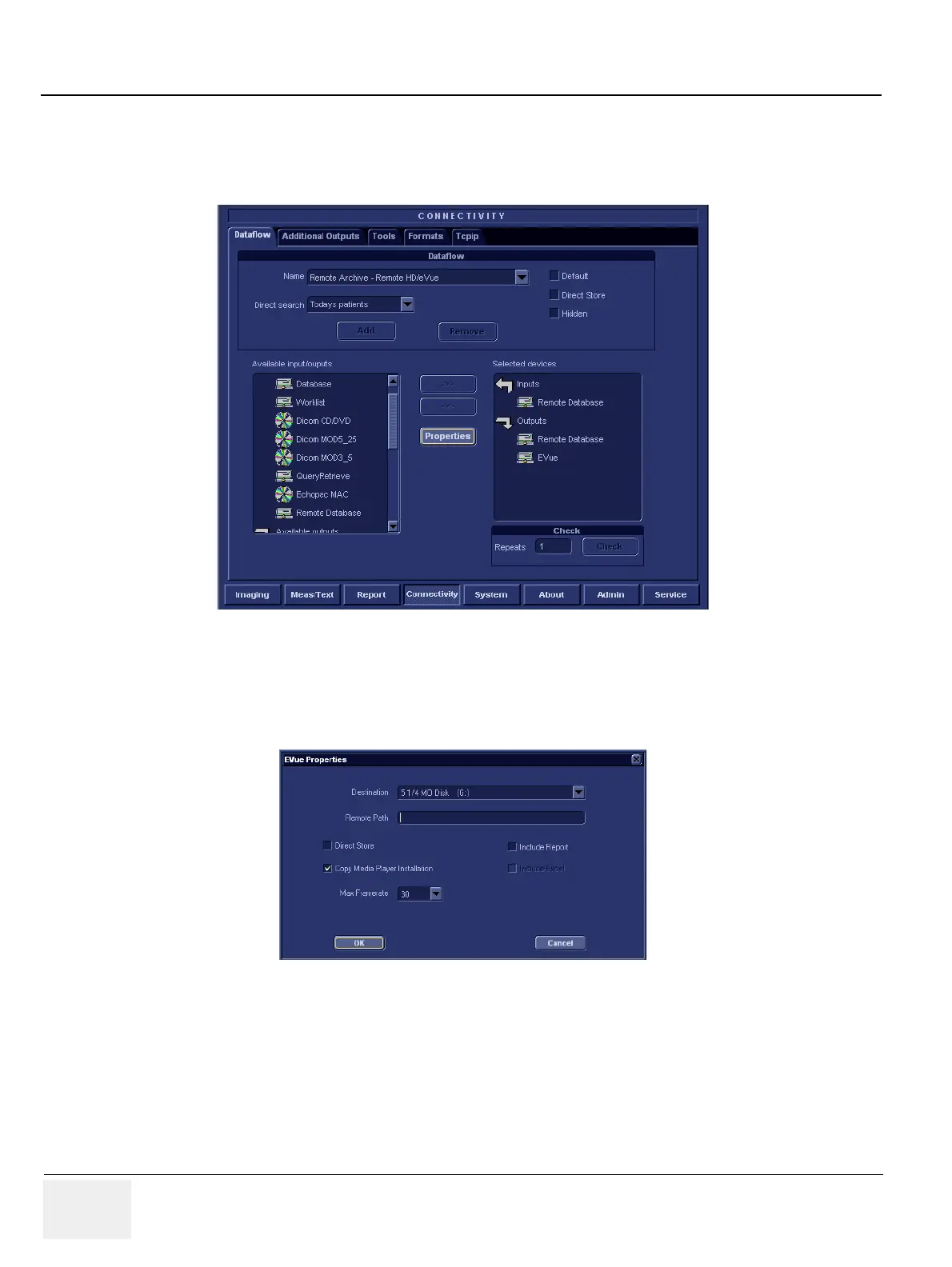

Figure 3-74 The eVue dataflow
Figure 3-75 The eVue Properties
