9-19-4 FRU Parts for BEP 4 as Replacement for BEP 2.2

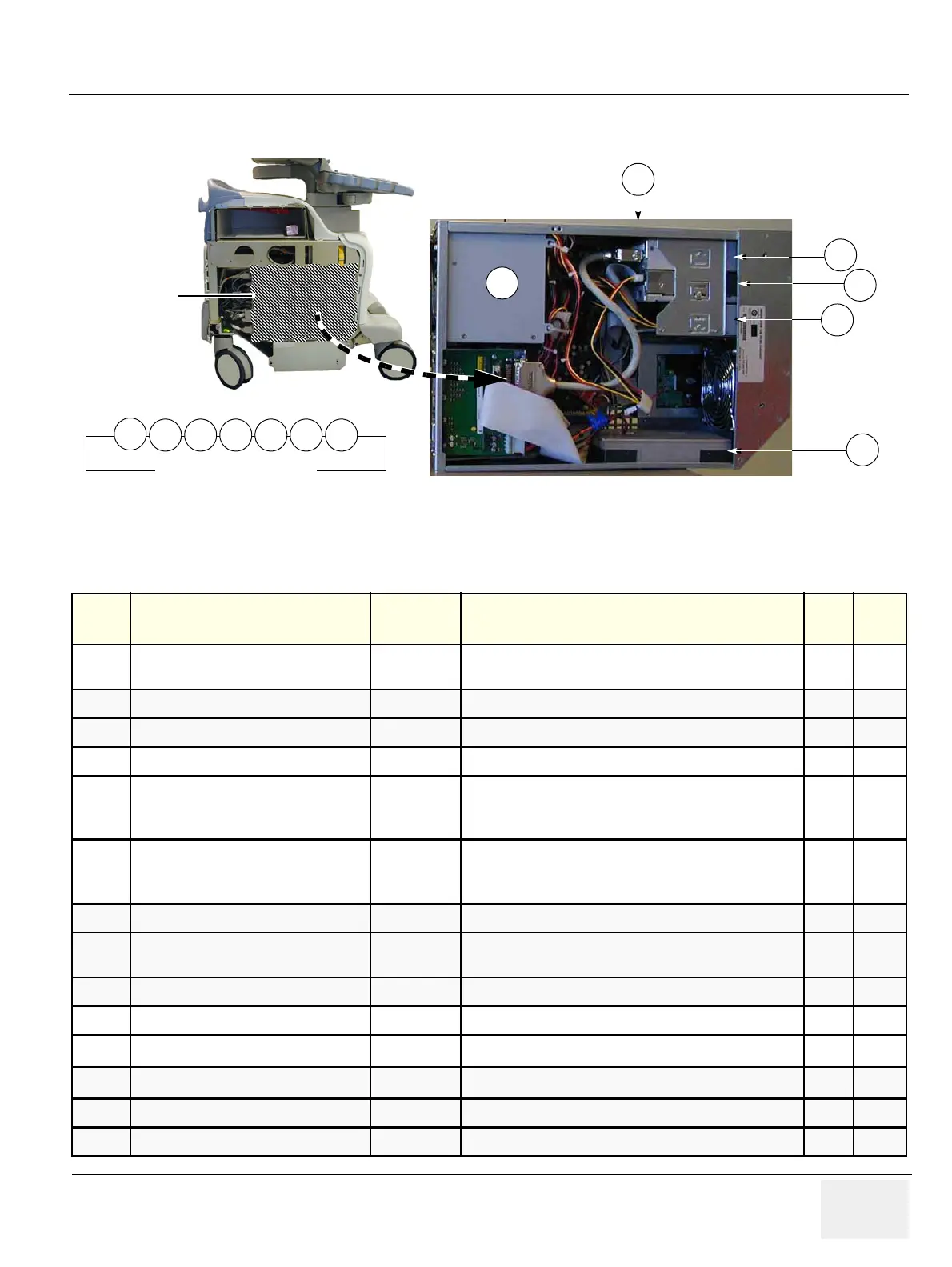

Figure 9-21 BEP4 (as replacement for BEP2.2)
Table 9-37 FRUs for BEP4 as Replacement for BEP 2.2
ITEM PART NAME
PART
NUMBER DESCRIPTION QTY FRU
1 BEP4 WITHOUT MO DRIVE FC200813
Back-End Processor without MOD, with Frame Grabber.
Use ONLY on units with RFI.
1Y
2 MO DRIVE, 9.1 GB FC200271 MOD DRIVE WITH MOUNTING BRACKETS 1 Y
3 POWER SUPPLY 2404028-4 POWER SUPPLY WITH UPS 1 Y
4 BATTERY ASSEMBLY 2266548-5 1 Y
5 DVD DRIVE
2404028
OR
2404028-10
2404028-10 REQUIRES A SOFTWARE PATCH 1 Y
6 PATIENT IO MODULE (FRU) 2348186-22
SAME AS FA200801
MCD REVISION F OR HIGHER OR 01 (OR HIGHER)
MAY ALSO BE USED.
1Y
7 FAN FOR BACK END PROCESSOR 2404028-11 For BEP3, BEP3.2 and BEP4.x 1 Y
8 BEP3 HDD FRU 2404028-2
80 GBYTES SATA HARD DISK DRIVE FOR BEP3.
MOUNTING HARDWARE INCLUDED.
1 Y
Hard Disk Drive 160GB 2404028-1 1 N
9 PC2IPIIB FC200656 Communication between BEP and FEP2 (PC2IP 2B) 1 Y
9 DGVIC TRAY, COMPLETE FC200676 1 Y
10 DVI Loopback Cable 2354056
BIOS BLASTER FC200832 1 Y
System Software (Base Image) FD200035 1 Y
BACK-END
PROCESSOR
PARTS NOT ILLUSTRATED
1
2
3
4
5
6
7
8 9 10 11 12 13
To Next Page
