Configuration
7-10
L
EDSVS9332P-D21 EN 3.0
Remove connections
•
Since a source can have several targets, there may be further signal connections, which may
not be wanted.
•
Example:
– In the default setting of the basic configuration C0005 = 1000 (speed control), ASW1-IN1
and AIN2-OUT are connected.
– This connection is not automatically removed by the settings described above! If you do not
want this connection, remove it.
+
--
*
/
x/(1-- y)
C0600
x
y
ARIT2
ARIT2--OUT
C0602/1
200%
C0602/2
ARIT2--IN1
ARIT2--IN2
C0601/1
C0601/2
62
AOUT1
C434/1
+
+
AOUT1--IN
AOUT1--GAIN
AOUT1--OFFSET
C0434/3
C0434/2
C0431
C0433
C0432
3
4
AIN2
+
+
AIN2--OUT
AIN2--GAIN
AIN2--OFFSET
C0409/1
C0409/2
C0407
C0408
C0108/1
C0109/1
C0027/2
C0026/2
ASW1--IN1
C0812/1
1
0
C0812/2
ASW1--SET
ASW1--IN2
ASW1
ASW1--OUT
C0813
C0810/1
C0810/2
C0811FIXED0
FIXED0%
NSET--NADD

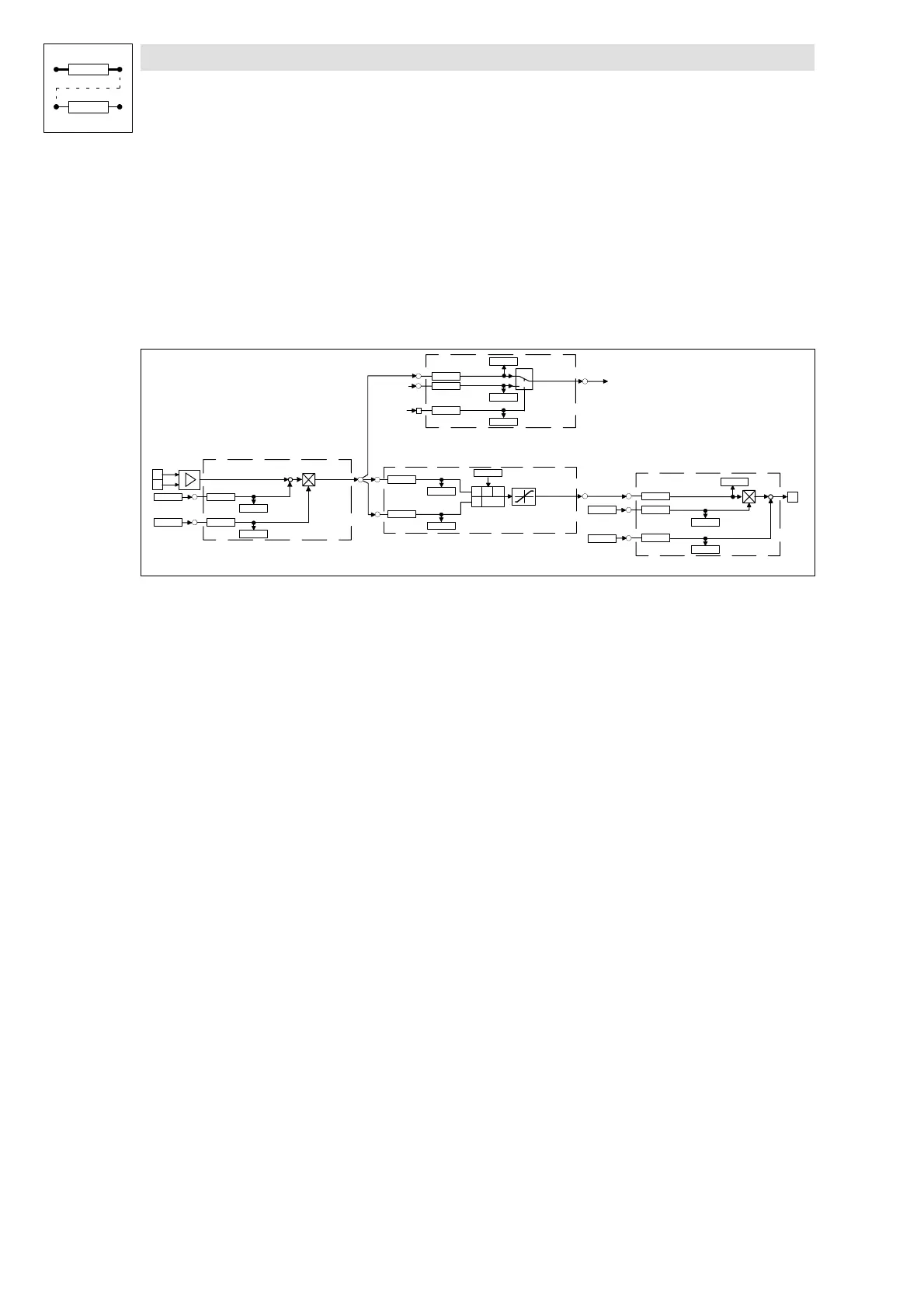

Fig. 7-4 Remove connections in a configuration
6. Remove connection between ASW1-IN1 and AIN2-OUT:
– Select C0810/1 using B or A.
– Change to the parameter level using PRG.
– Select the constant FIXED0% (selection number 1000) using B or A .
– Confirm using SH + PRG
– Change to the code level again using PRG.
Now, the connection is removed.
7. Save new configuration, if desired:
– If you do not want to lose the modifications after mains disconnection, save the new signal
configuration under C0003 in one of the parameter sets.
